CUMMINS N14 - DIPSTICK TUBE AND HOUSING; REMOVAL; CLEANING AND INSPECTION

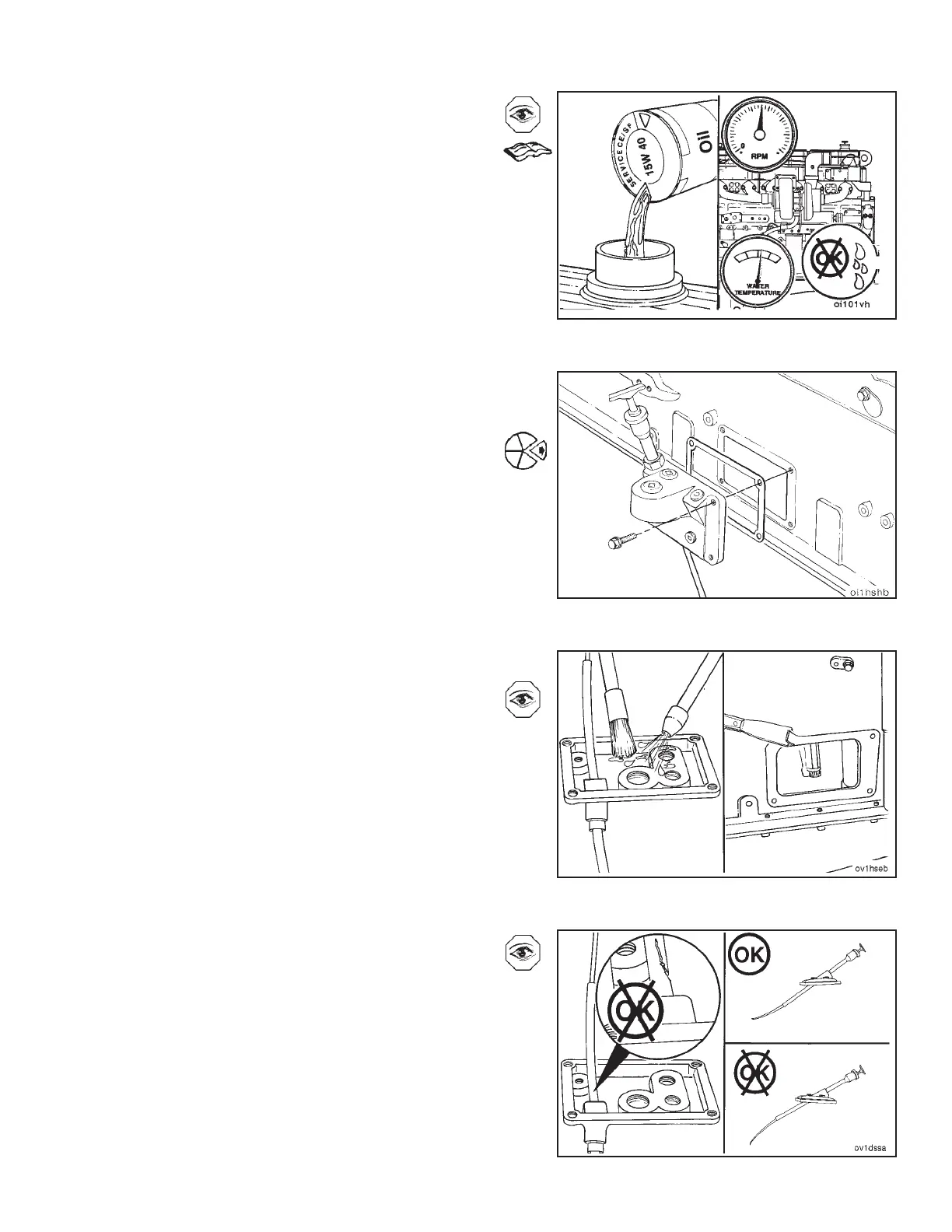

Fill the engine with lubricating oil. Refer to Procedure
2-07.
Operate the engine until it reaches a temperature of 82°C
[180°F], and check for leaks.
Dipstick Tube and Housing (2-09)
Removal
Remove the four capscrews and housing.
Cleaning and Inspection
Clean the housing gasket surface.
Clean the cylinder block gasket surface.
NOTE: Do not cut the gasket mounting surface with the
scraper.
Inspect the dipstick guide tube.
NOTE: If the guide tube is cracked, missing or not angled
downward in the oil pan, replace the dipstick tube housing.
Section 2 - Lubricating System Dipstick Tube and Housing (2-09)
N14 Page 2-25
