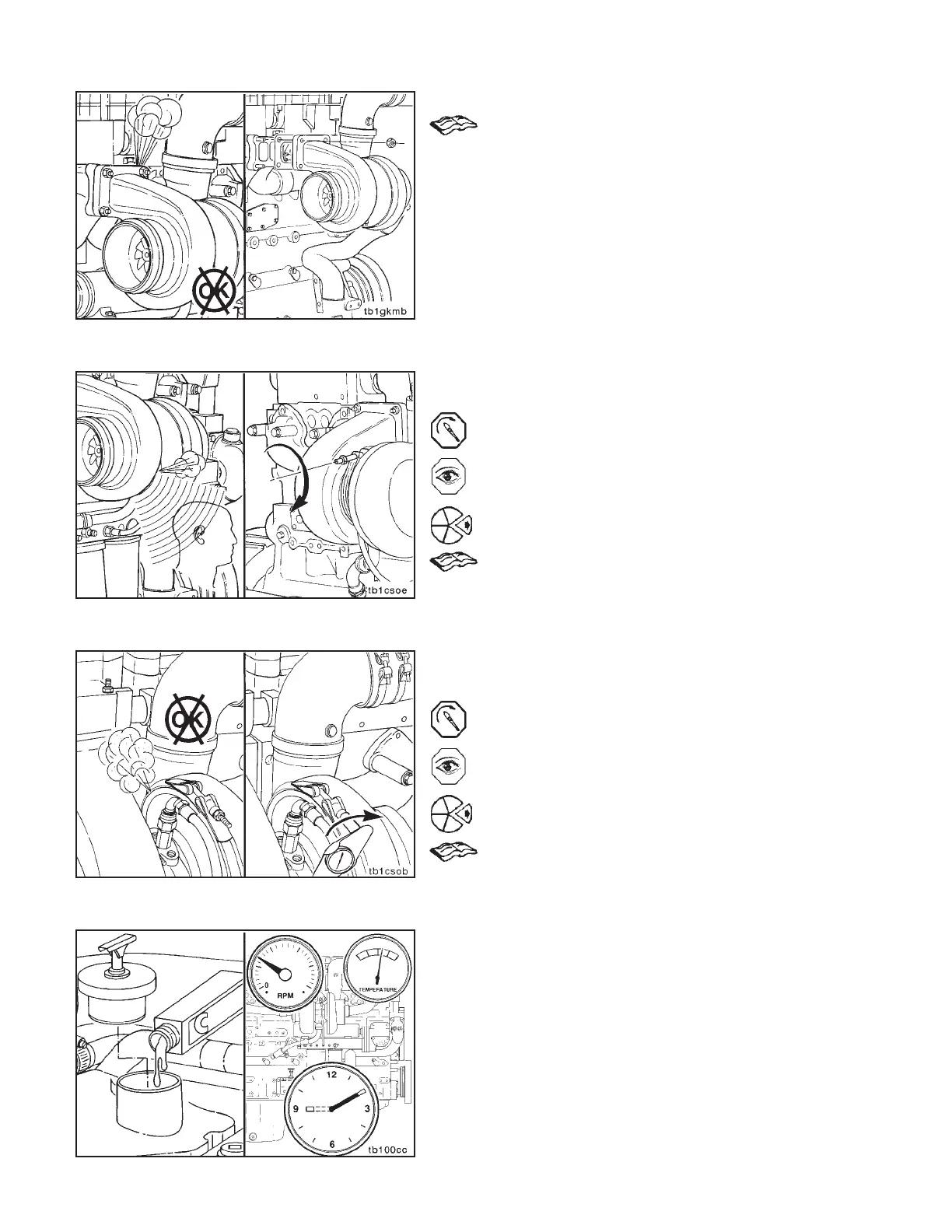

Turbocharger to exhaust manifold mounting gasket.
• Replace the gasket. Refer to Procedure 3-08.
Turbine housing sealing surface air leak.
• Tighten the V-band clamp.
Torque Value: 8.5 N•m [75 in-lb]
• Check for an air leak.
• If an air leak is still present, remove and replace the
turbocharger. Refer to Procedure 3-08.
Compressor housing sealing surface air leak.
• Tighten the V-band.
Torque Value: 8.5 N•m [75 in-lb]
• Check for an air leak.
• If an air leak is still present, remove and replace the
turbocharger. Refer to Procedure 3-08.
Turbocharger Seal Leak - Testing
(3-02)
Turbine Seal
Add one unit of fluorescent tracer, Part No. 3376891, to
each 38 liters [10.0 U.S. gallons] of engine lubricating oil.
Operate the engine at low idle for 10 minutes.
Turbocharger Seal Leak - Testing (3-02) Section 3 - Combustion Air System
N14Page 3-8
