Installation

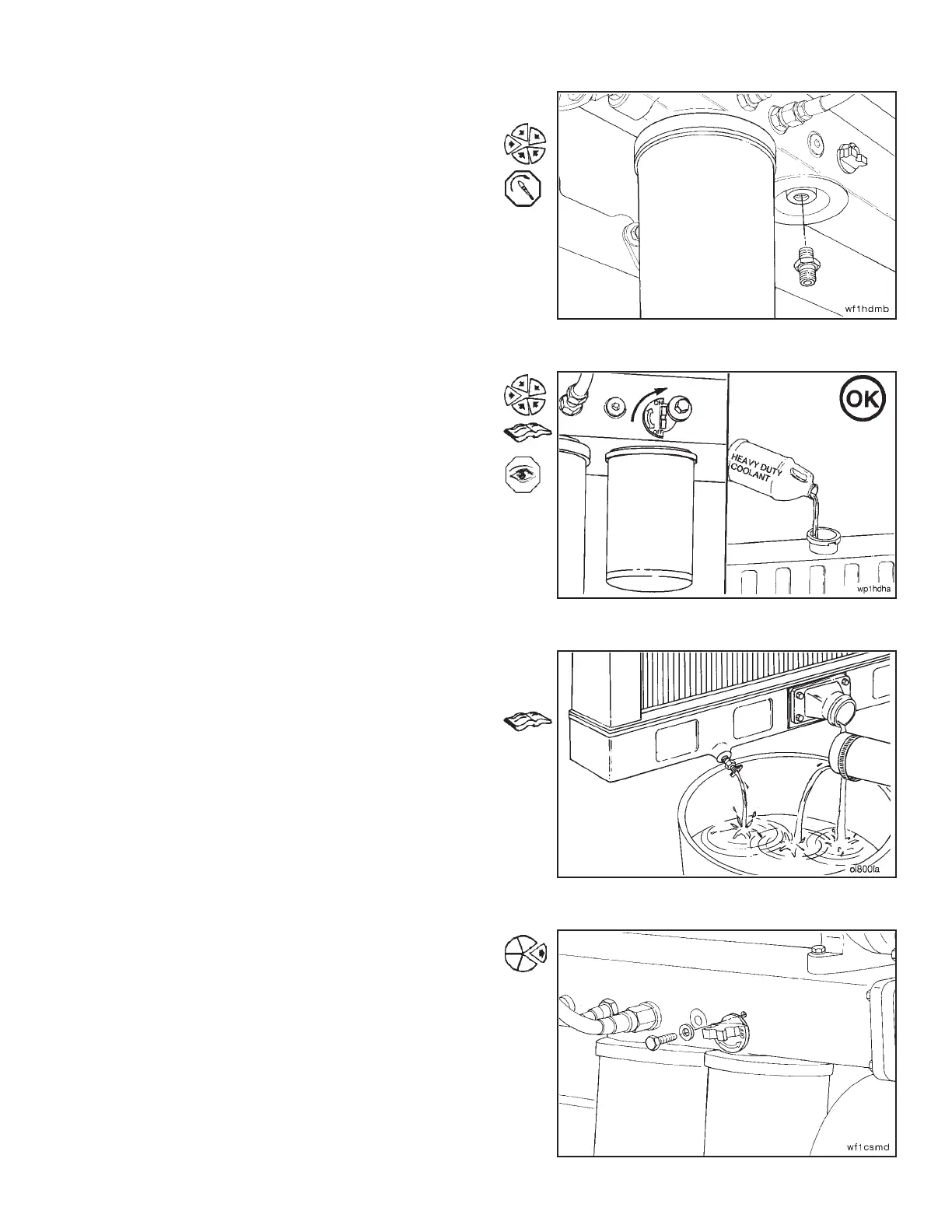

Install the insert into the oil cooler housing.
Tighten the insert.
Torque Value: 47 N•m [35 ft-lb]
Install the coolant filter (DCA4).
Turn the manual shutoff valve to the ‘‘ON’’ position.
The valve is in the ‘‘ON’’ position when the valve is in the
vertical position.
Fill the engine with coolant . Refer to Procedure 1-09.
Start the engine and check for leaks.
Coolant Filter Shutoff Valve (1-29)
Removal
Drain the cooling system. Refer to Procedure 1-07.
If Coolant Dam Pressure Tester, AFT-2000, is used to
draw a vacuum on the cooling system, it is not necessary
to drain the cooling system.
Remove the retaining capscrew and washer.
Section 1 - Cooling System Coolant Filter Shutoff Valve (1-29)
N14 Page 1-63
