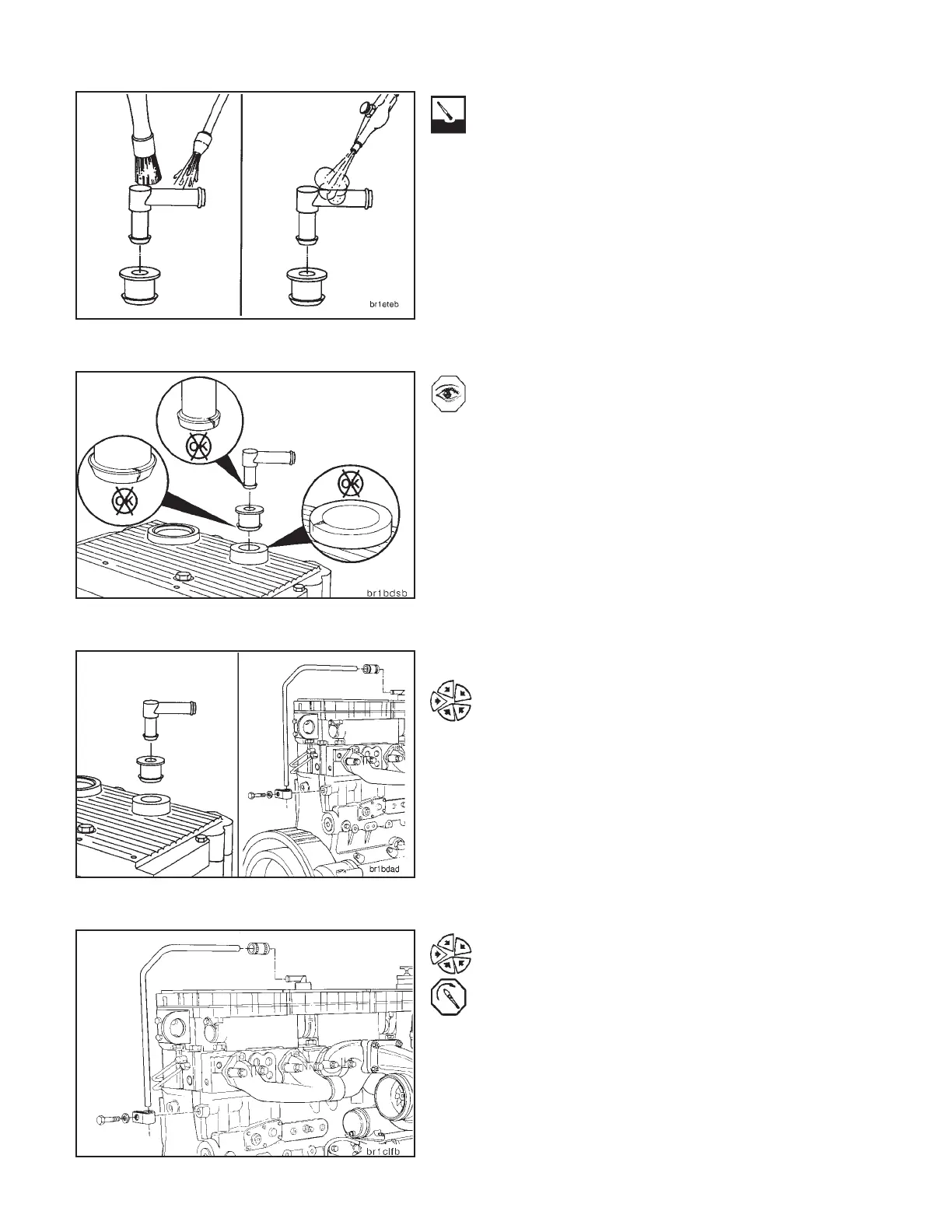

Use solvent to clean the breather tube, vapor barriers,
and rubber gasket. Dry it with compressed air.
Inspect the breather tube, the baffle plate, the rubber
gasket, and the rocker housing cover for cracks or other
damage. Replace if necessary.
Installation
Assemble the breather vent tube as shown.
Install the breather vent tube on the breather tube, and
tighten the hose clamps.
Torque Value: 5 N•m [40 in-lb]
Install and tighten the tube support brackets and cap-
screws.
Torque Value: 47 N•m [35 ft-lb]
