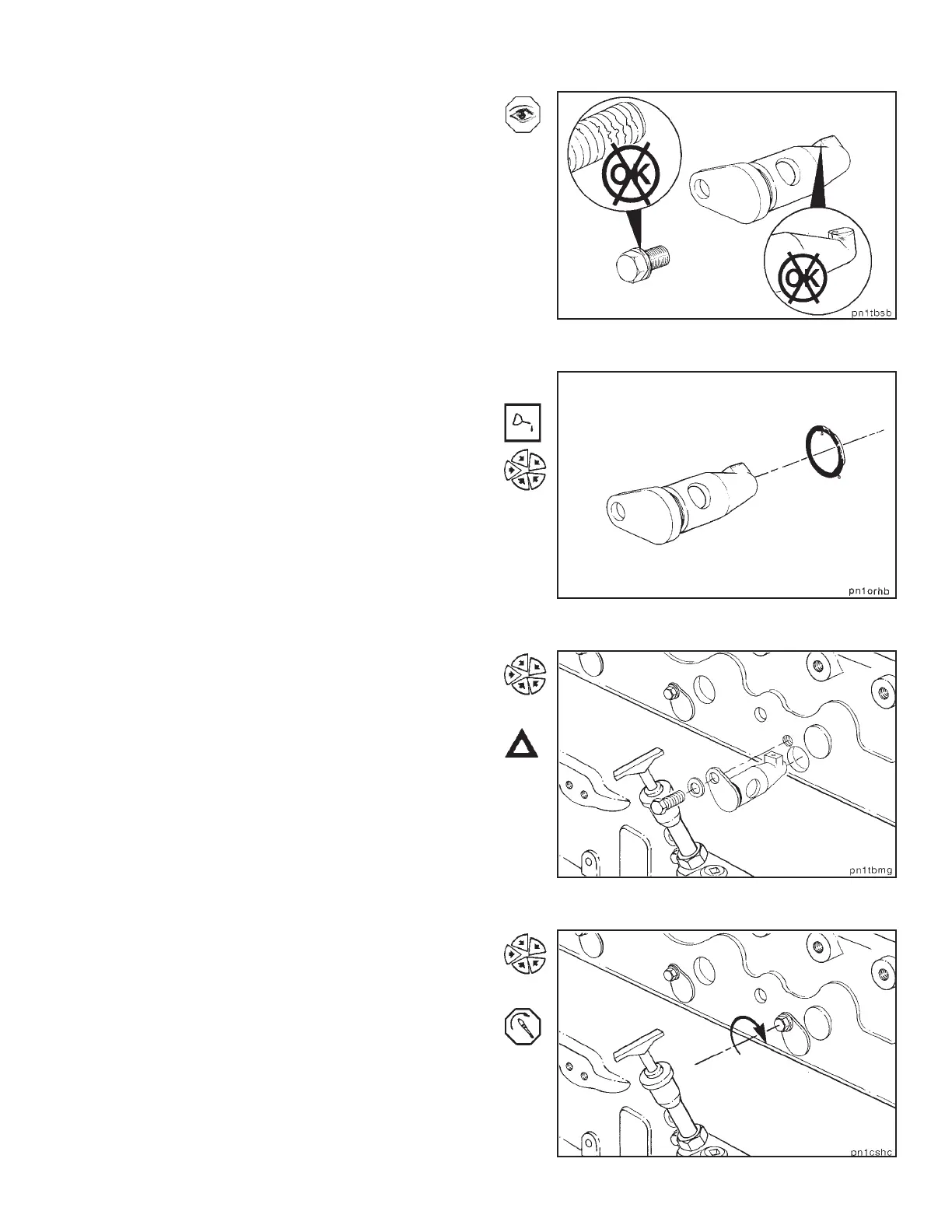

Visually inspect the piston cooling nozzles for cracks or
damage.
Visually inspect the screws for damaged or mutilated
threads.
Replace any parts that are damaged.
Installation
Use vegetable oil to lubricate the new o-rings. Do not
soak the new o-rings in engine oil.
Install the o-rings in the groove of the piston cooling
nozzle.
Install the nozzles in the cylinder block.
NOTE: Make sure the oil passage opening in the piston
cooling nozzle is pointing up toward the piston.
Caution: Do not use the capscrew to pull the nozzle into
the cylinder block. Nozzles and o-ring damage or exter-
nal oil leaks can result.
Install the capscrews as follows:
• Tighten the Nyloc capscrews.
Torque Value: 25 N•m [220 in-lb]
Section 2 - Lubricating System Piston Cooling Nozzles (2-20)
N14 Page 2-63
