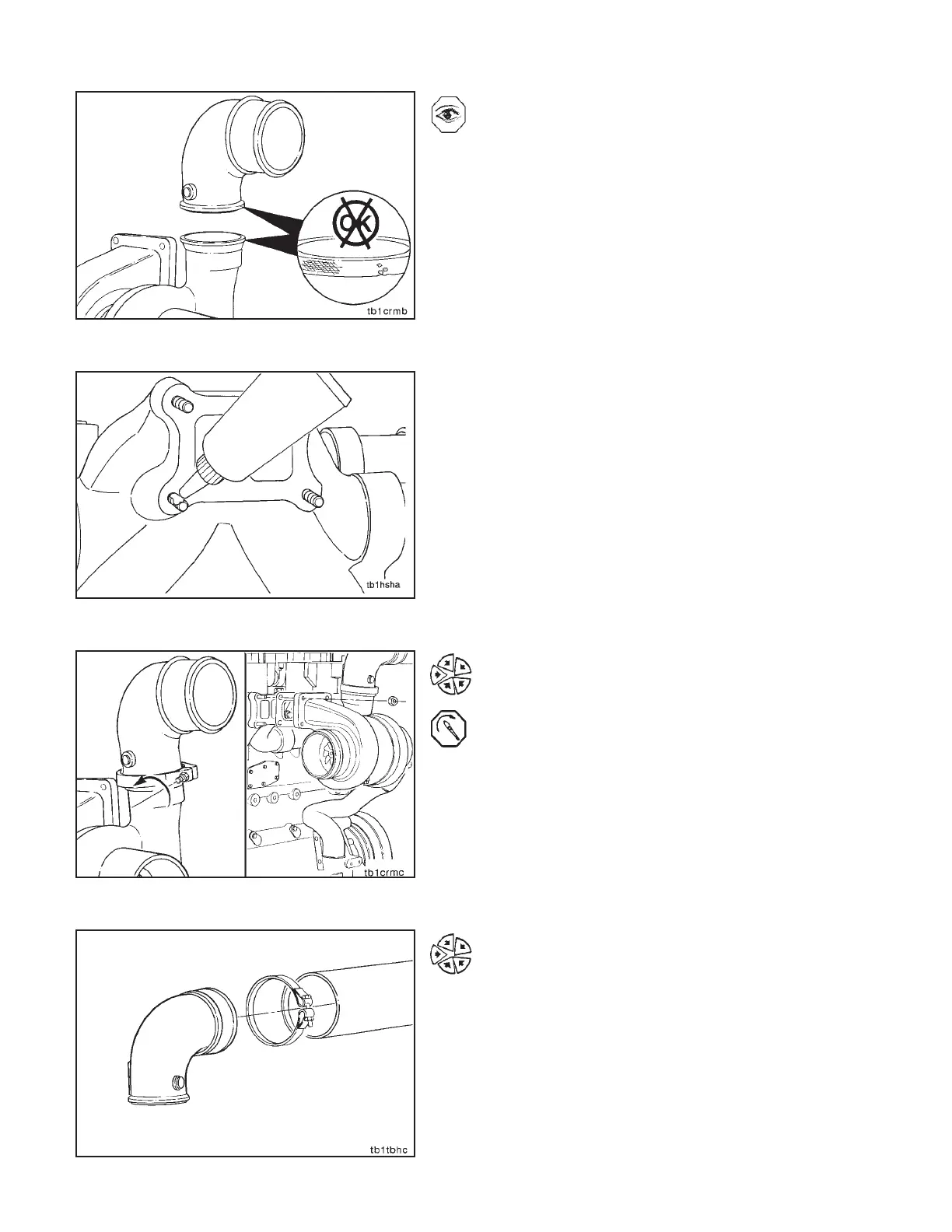

Visually inspect the turbocharger compressor V-band out-
let and the discharge elbow V-band connection for dents
or fretting.
Replace the turbocharger or discharge elbow if damaged
so that the compressed air will not leak.
Installation
Apply a film of high temperature anti-seize compound,
Part No. 3823097, on the turbocharger mounting studs.
Install a new mounting gasket, the turbocharger, and the
four mounting nuts.
Tighten the mounting nuts.
Torque Value: 68 N•m [50 ft-lb]
Install the discharge elbow and clamp on the CAC pipe
connection.
NOTE: Do not tighten the clamp until the elbow is installed
on the turbocharger.
Turbocharger Replacement (3-08) Section 3 - Combustion Air System
N14Page 3-20
