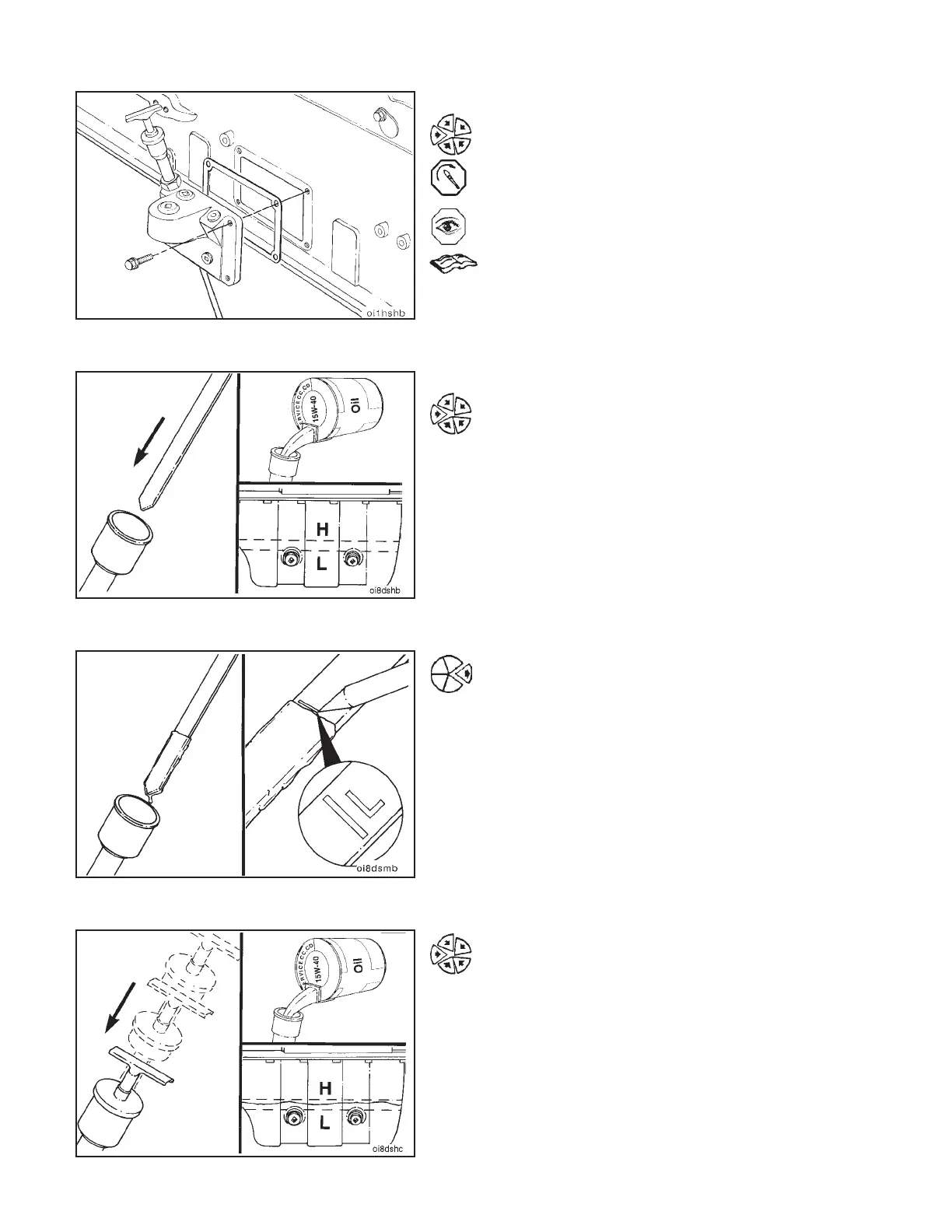

Installation
Install the dipstick tube housing and a new gasket.
Install the four capscrews, and tighten.
Torque Value: 47 N•m [35 ft-lb]
NOTE: Check the dipstick calibration. Refer to Procedure
2-10.
Dipstick Calibration (2-10)
Install the dipstick in the dipstick tube housing.
NOTE: Do not overtighten the dipstick.
Use clean 15W-40 oil to fill the oil pan to the specified
‘‘LOW’’ oil level.
The ‘‘LOW’’ level oil pan capacity is 30 liters [8.0 gal].
Remove the dipstick, and scribe a mark across the dip-
stick at the indicated ‘‘LOW’’ oil level. Mark the ‘‘LOW’’
oil level with an ‘‘L’’.
NOTE: The dipstick will break if the scribe mark is too deep.
NOTE: If a new blank dipstick is being used, cut the dipstick
off approximately 38 mm [1.5 inch] below the ‘‘LOW’’ oil
level mark.
Install the dipstick in the dipstick tube housing.
NOTE: Do not overtighten the dipstick.
Fill the oil pan to the specified ‘‘HIGH’’ oil level.
The ‘‘HIGH’’ level oil pan capacity is 36 liters [9.5 gal].
Dipstick Calibration (2-10) Section 2 - Lubricating System
N14Page 2-26
