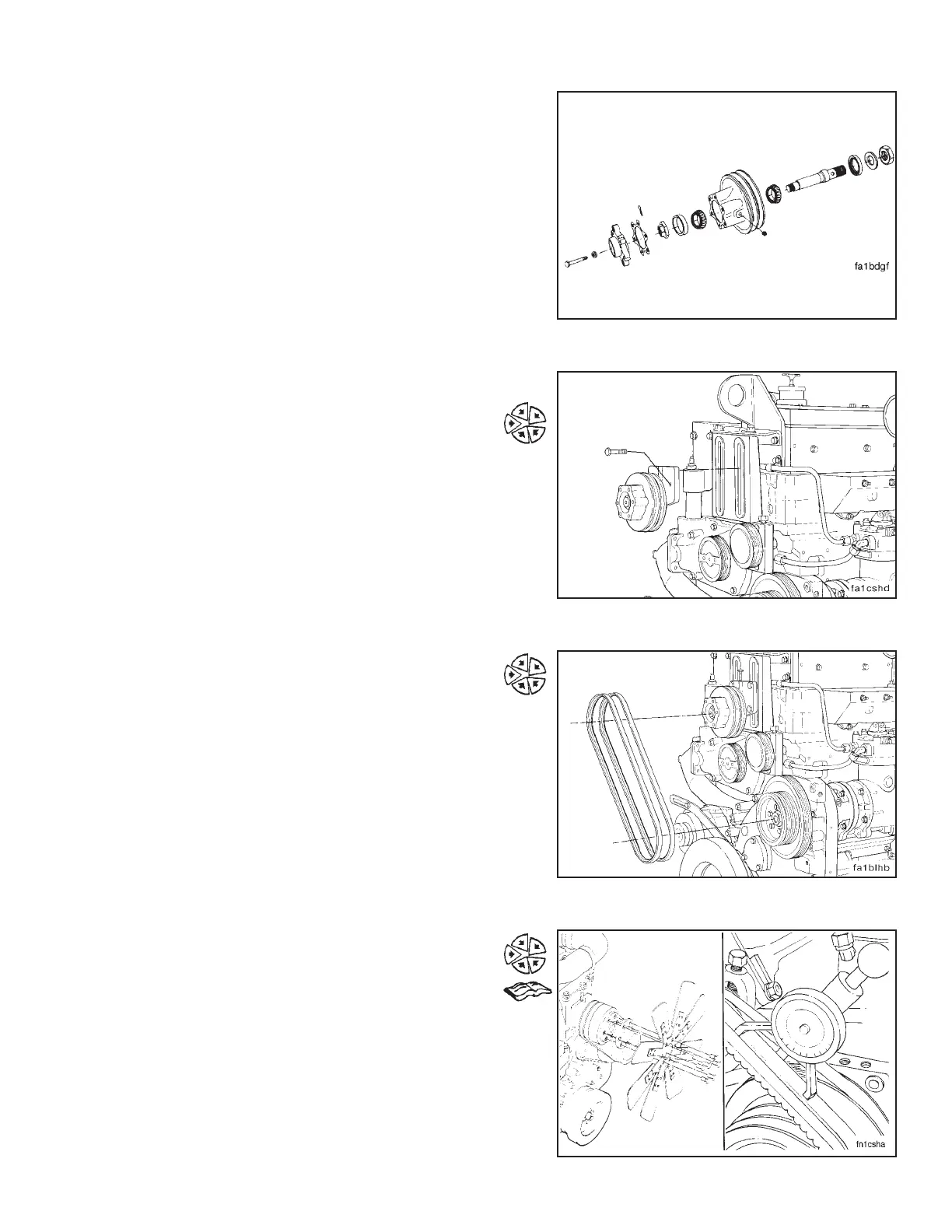

The end clearance on ‘‘Step-Bore’’ fan hub (without bear-
ing spacer) must be 0.08 mm to 0.25 mm [0.003-inch to
0.010-inch].
Installation
Install the new fan hub and capscrews.
Use your fingers to tighten the capscrews.
Install the fan drive belts on the fan hub and the accessory
drive pulley. Do not tighten the belts.
Install the fan.
Tighten the mounting capscrews to the vehicle manu-
facturer’s specifications.
Adjust and tighten the fan drive belts. Refer to Procedure
1-21.
Section 1 - Cooling System Fan and Fan Hub (1-22)
N14 Page 1-47
