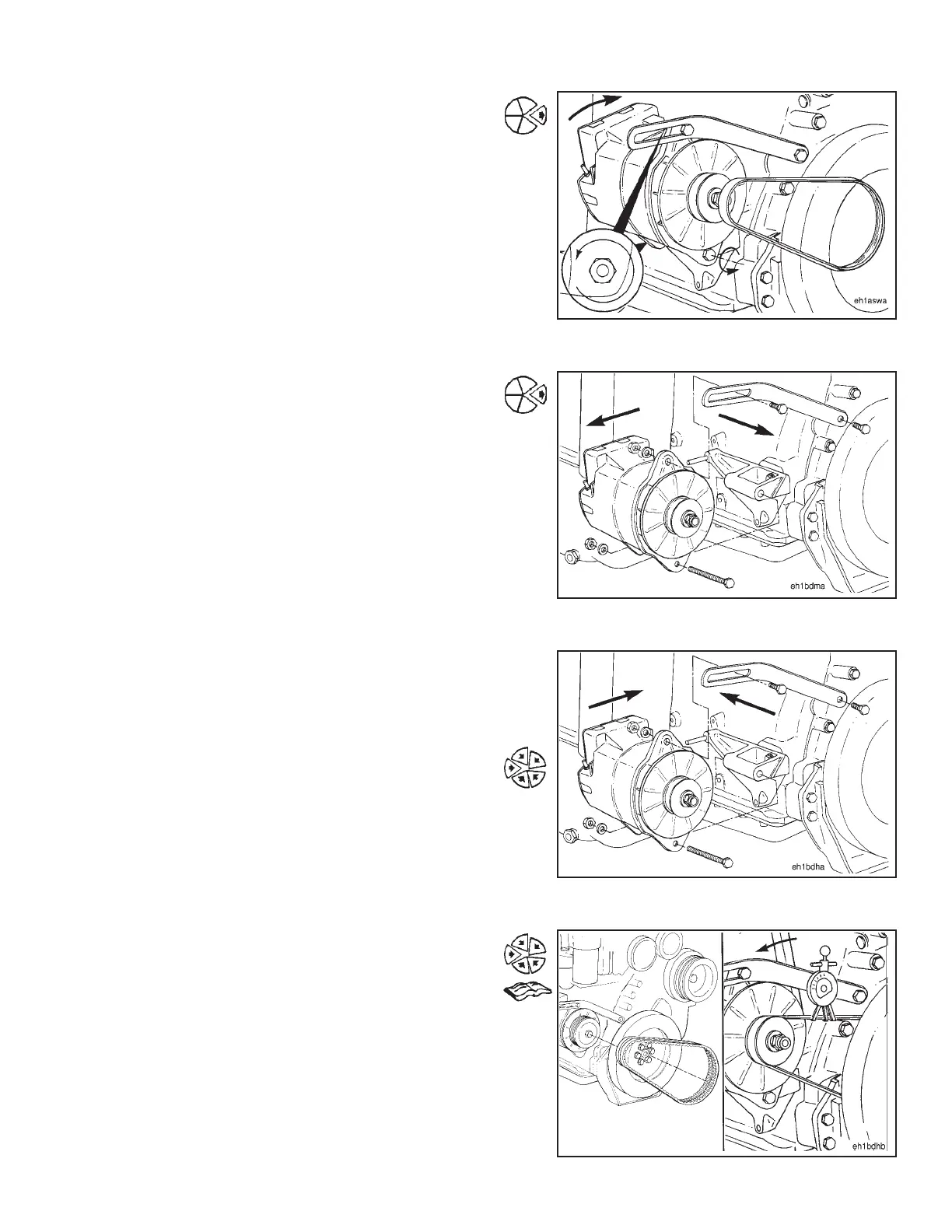

Loosen the alternator to alternator support nut and cap-
screw.
Loosen the adjusting link capscrew.
Push the alternator toward the engine to release tension
on the alternator belt, and remove the belt(s).
Remove the adjusting link capscrew and the adjusting
link.
Remove the alternator to alternator support bracket nut,
washer, capscrew, and the alternator.
Installation
NOTE: Do not tighten the alternator mounting and adjusting
link capscrews and nuts until the alternator belt is installed
and adjusted.
Install the alternator, capscrew, washer, and nut to the
alternator mounting bracket.
Install the adjusting link and mounting capscrews.
Install and adjust the alternator belt. Refer to Procedure
6-04.
Section 6 - Electrical System Alternator Replacement (6-05)
N14 Page 6-9
