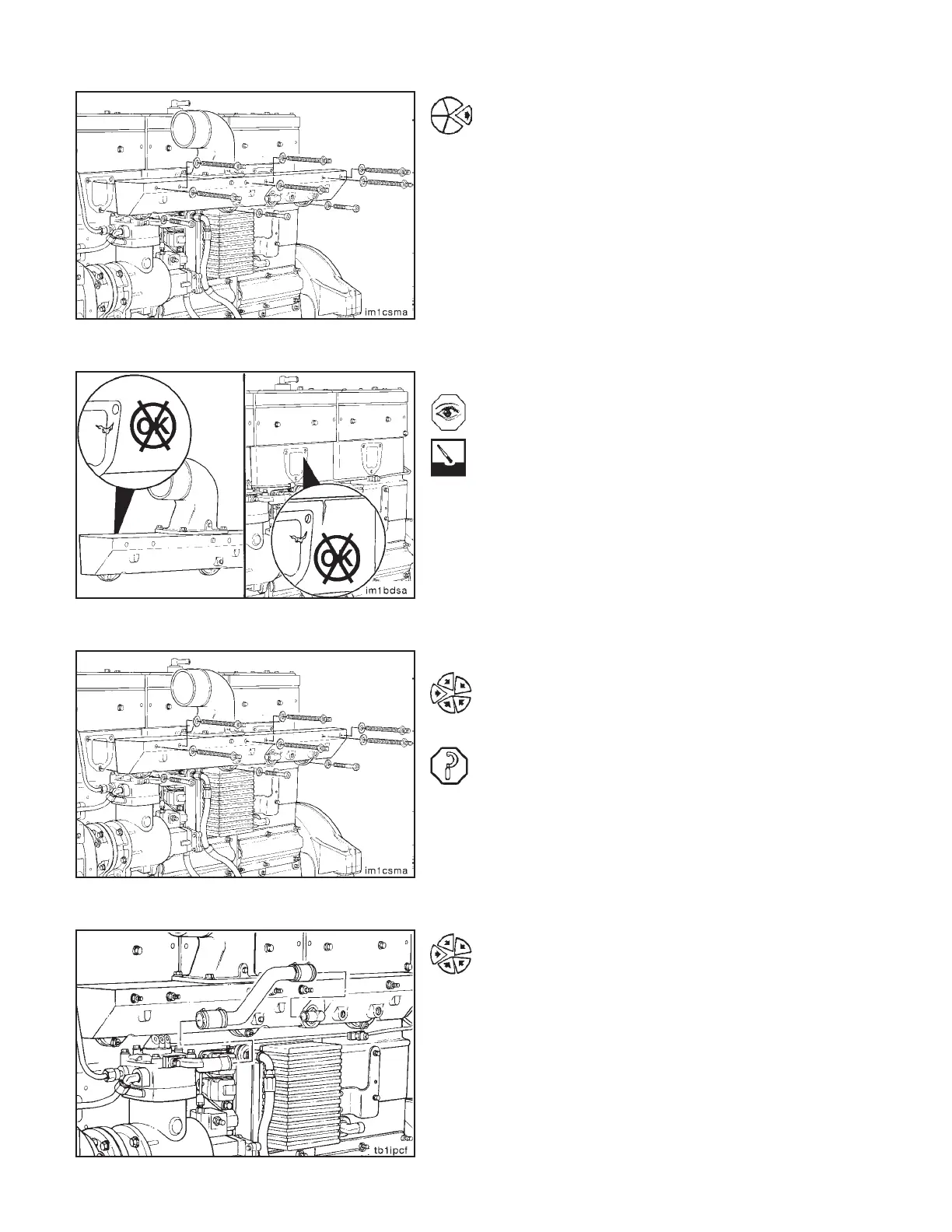

Remove the four capscrews that attach the intake air
connector to the intake manifold.
Remove the nine capscrews and remove the intake
manifold.
Cleaning and Inspection
Visually inspect the intake manifold for cracks, fretting or
other damage.
Clean and visually inspect mating surfaces on the cylin-
der head for cracks and fretting.
Replace the manifold if cracks or other damage are found.
Installation
Using new gasket(s), install the intake manifold onto the
cylinder head mounting surfaces.
Install and tighten the nine capscrews.
Torque Value: 47 N•m [35 ft-lb]
Install the supply air return line from the air compressor
to the intake manifold.
Intake Manifold (3-10) Section 3 - Combustion Air System
N14Page 3-26
