Installation

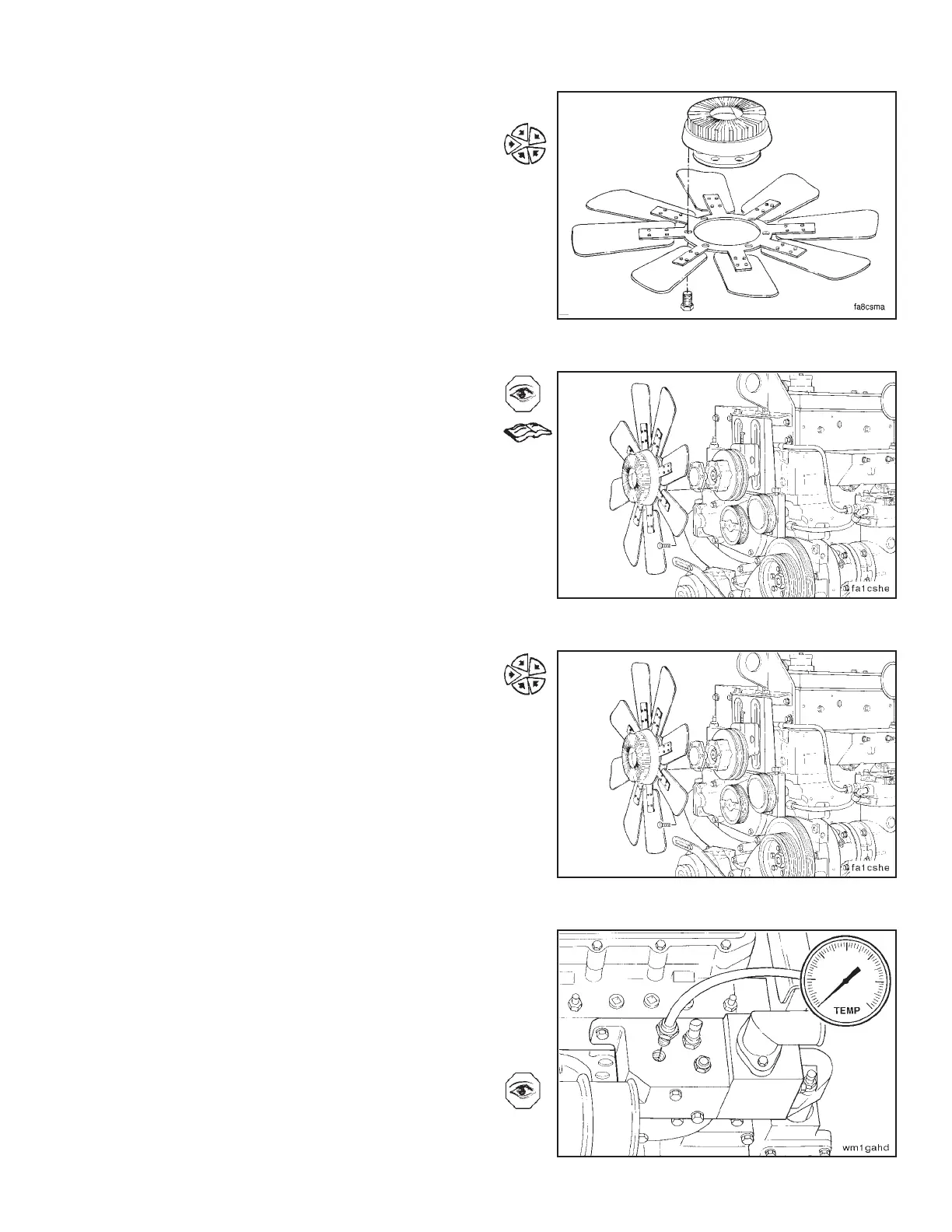

Install the fan on the viscous fan clutch. Install the cap-
screws or the hexagon nuts which hold the fan to the
clutch.
Make sure the correct number of spacers are still on the
fan hub.
Tighten the mounting capscrews or hexagon nuts.
Refer to the manufacturer’s recommendation for torque
value.
Carefully install the fan and clutch assembly in the fan
shroud.
Tighten the mounting capscrews to the vehicle manu-
facturer’s specifications.
On-Off Thermatic Fan Clutch (1-24)
Checking - Cooling System Temperature
Actuation
Check the thermatic fan annually.
NOTE: Dual control systems are required for automatic
radiator shutters and thermatic fans. Shutters must open
and fans turn ‘‘ON’’ whenever the intake manifold air tem-
perature rises above its sensor set point. Either condition --
high coolant temperature or high intake manifold tempera-
ture -- must activate the shutters and/or fan.
Section 1 - Cooling System On-Off Thermatic Fan Clutch (1-24)
N14 Page 1-51
