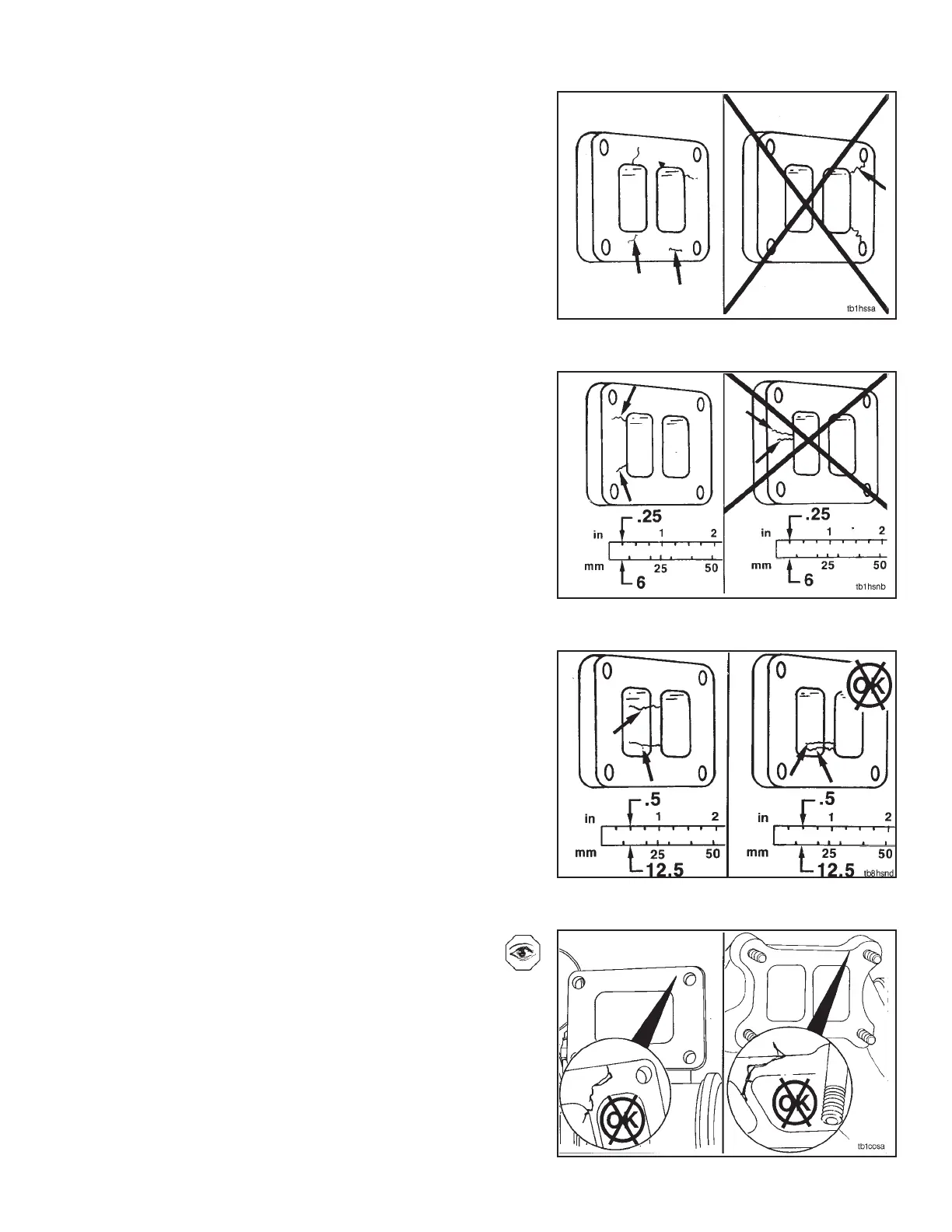

Cracks on the turbocharger mounting flange must not
reach the mounting holes.
Two cracks on the turbocharger mounting flange must be
separated by 6.4 mm [0.25-inch].
Through cracks at the dividing wall are acceptable and
can be any length.
They must be separated by at least 12.5 mm [0.5-inch].
Visually inspect the exhaust manifold gasket surfaces
and the mounting studs for cracks or damage.
Replace any cracked manifolds or damaged mounting
studs.
Section 3 - Combustion Air System Turbocharger Replacement (3-08)
N14 Page 3-19
