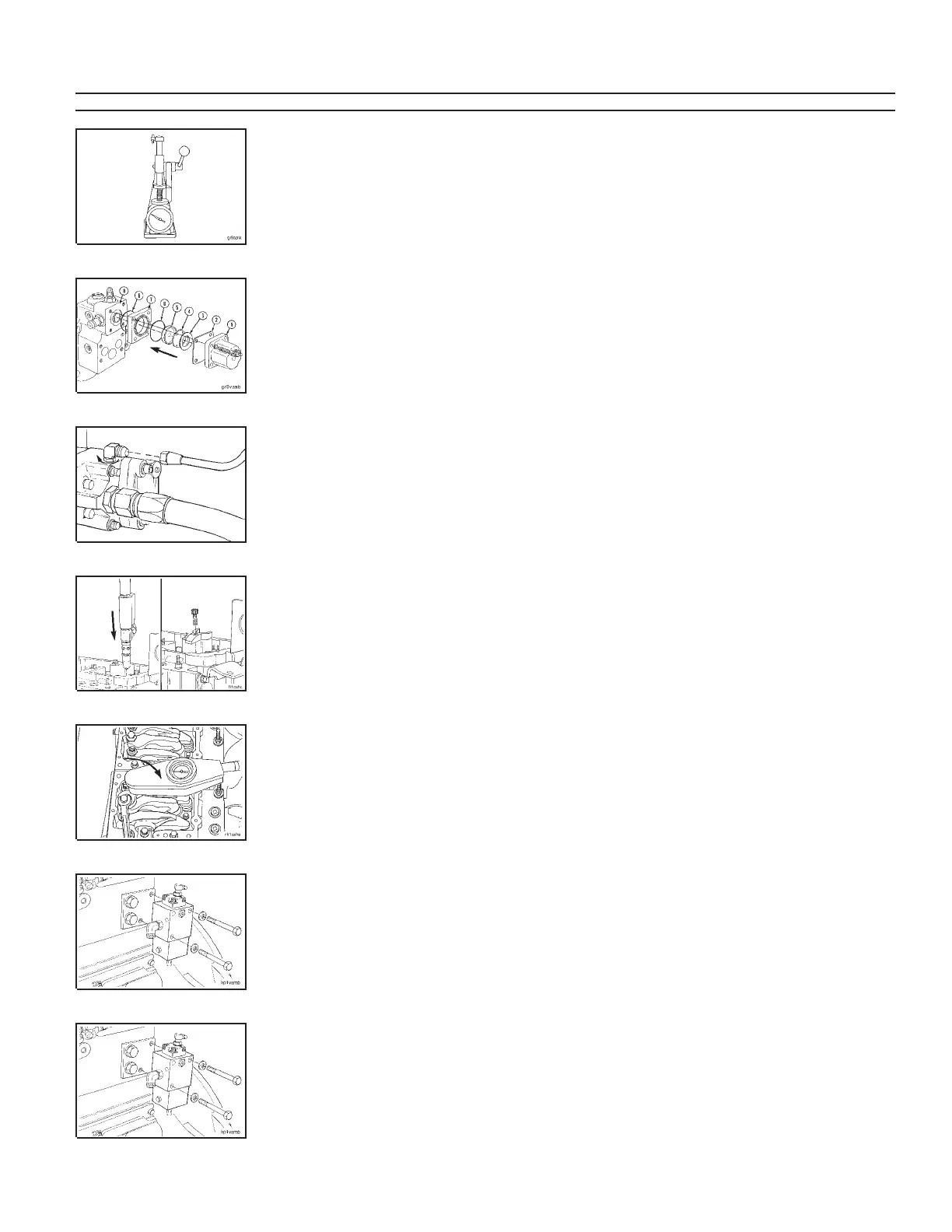

Fuel Pump Regulator Spring Force (At
16.0 mm [0.631 in] Compressed Height
(CELECT™ Engines) 3.63 Kg MIN 8 lbf
4.44 Kg MAX 10 lbf
Fuel Pump Shutoff Valve Mounting
Capscrew (STC and CELECT™ Engines) 3.4 N•m 30 in-lb
Gear Pump Check Valve Jam Nut (STC and
CELECT™ Engines) 5-09 5.1 N•m MIN 45 In-lb
5.7 N•m MAX 50 in-lb
Injector Holddown Capscrews 7-04
• STC 54 N•m 40 ft-lb
• CELECT™ 40 N•m 30 ft-lb
Valve and Injector Rocker Lever Adjusting
Screw Lock Nut (STC and CELECT™
Engines) 7-04
• With Adapter ST-669 54 N•m 40 ft-lb
• Without Adapter 68 N•m 50 ft-lb
STC Oil Control Valve Mounting
Capscrews 5-11 47 N•m 35 ft-lb
STC Oil Control Valve Bracket Mounting
Capscrews 5-11 68 N•m 50 ft-lb
Component Specifications and Torque Values Section V - Engine Component Specifications
Page V-20 N14
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
