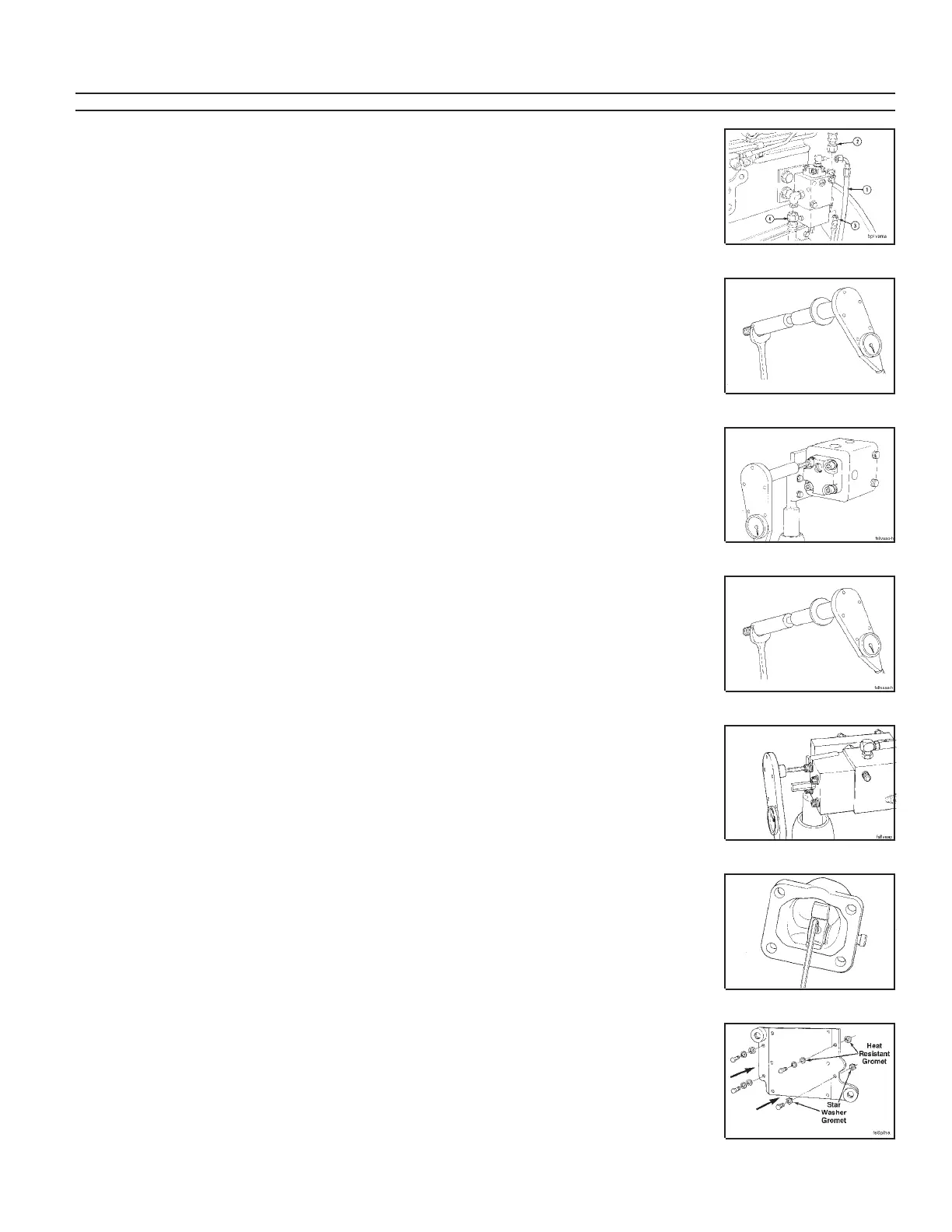

STC Oil Control Valve Fittings
• Fuel Pressure Sensing Line Fitting (1) 9.5 N•m 84 in-lb
• Oil Outlet Fitting (2) 13.6 N•m 120 in-lb
• Oil Vent Line Fitting (3) 9.5 N•m 84 in-lb
• Supply Line Fitting (4) 13.6 N•m 120 in-lb
STC Oil Control Valve Diaphram Housing
Mounting Capscrews 13.6 N•m 120 in-lb
STC Oil Control Valve Rail Cover
Capscrews 6.8 N•m 60 in-lb
STC Oil Control Valve Plunger Locknuts 4.0 N•m 35 in-lb
STC Oil Control Valve Acorn Nut 9.5 N•m 84 in-lb
VS Governor Throttle Stop Set Screw 5-06 5.7 N•m MIN 50 in-lb
(STC Engines) 6.8 N•m MAX 60 in-lb
ECM Cooling Plate Mounting Capscrew
(CELECT™ Engines) 41 N•m 30 ft-lb
Section V - Engine Component Specifications Component Specifications and Torque Values
N14 Page V-21
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
