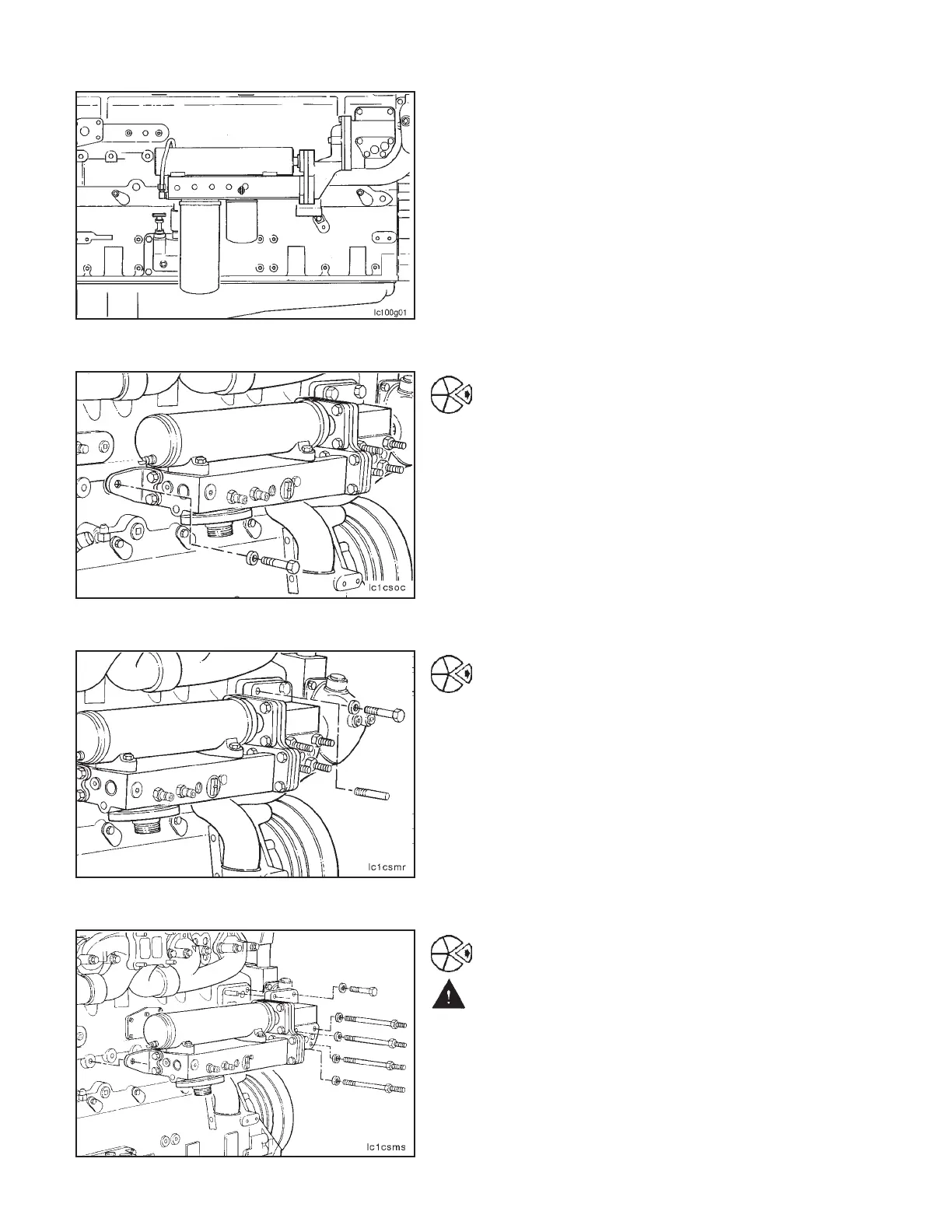

For those engine applications utilizing the low mount oil
cooler arrangement, follow this procedure.
Remove the capscrew which holds the oil cooler support
bracket to the cylinder block at the rear of the oil cooler.
Remove one of the capscrews which holds the oil cooler
support to the cylinder block. Install a guide stud in the
hole.
Remove the remaining five capscrews from the oil cooler
support, and remove the cooler assembly.
Warning: Because this part weights more than 23 kg [50
lb], two people or a hoist will be required to lift the oil
cooler assembly to avoid personal injury.
Lubricating Oil Cooler Assembly (2-19) Section 2 - Lubricating System
N14Page 2-50
