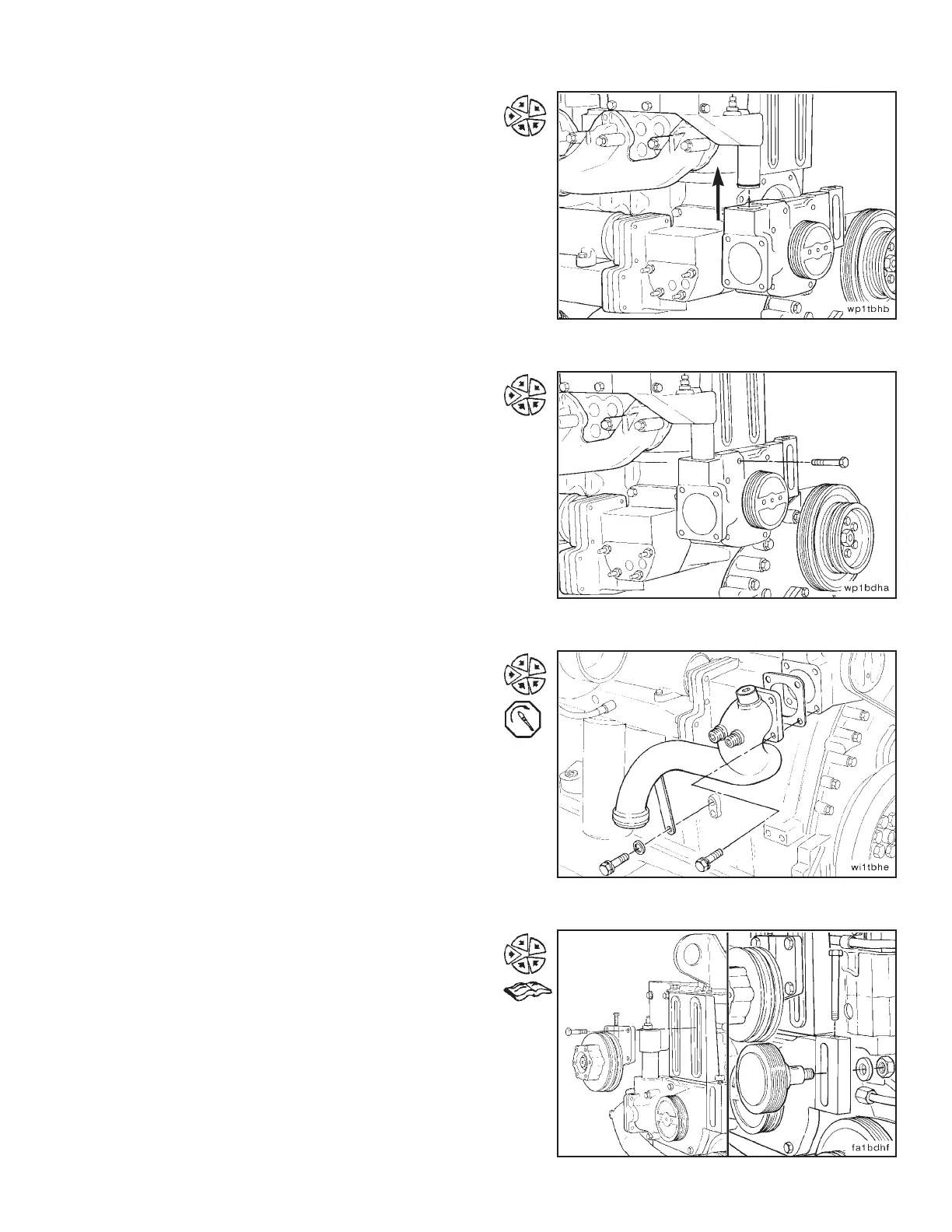

Install the water transfer tube attached to the thermostat
housing in the water pump.
Install the water pump to the block using the six mounting
capscrews. Tighten the capscrews to the following torque
values:
• Tighten to 15 N•m [10 ft-lb].
• Tighten to 30 N•m [20 ft-lb].
• Tighten to 47 N•m [35 ft-lb].
Install the coolant inlet transfer connection and a new
gasket on the water pump.
Tighten the capscrews.
Torque Value: 47 N•m [35 ft-lb]
Install the fan hub and the water pump idler pulley as-
sembly. Refer to Procedures 1-22 and 1-26, respectively.
Section 1 - Cooling System Water Pump (1-27)
N14 Page 1-61
