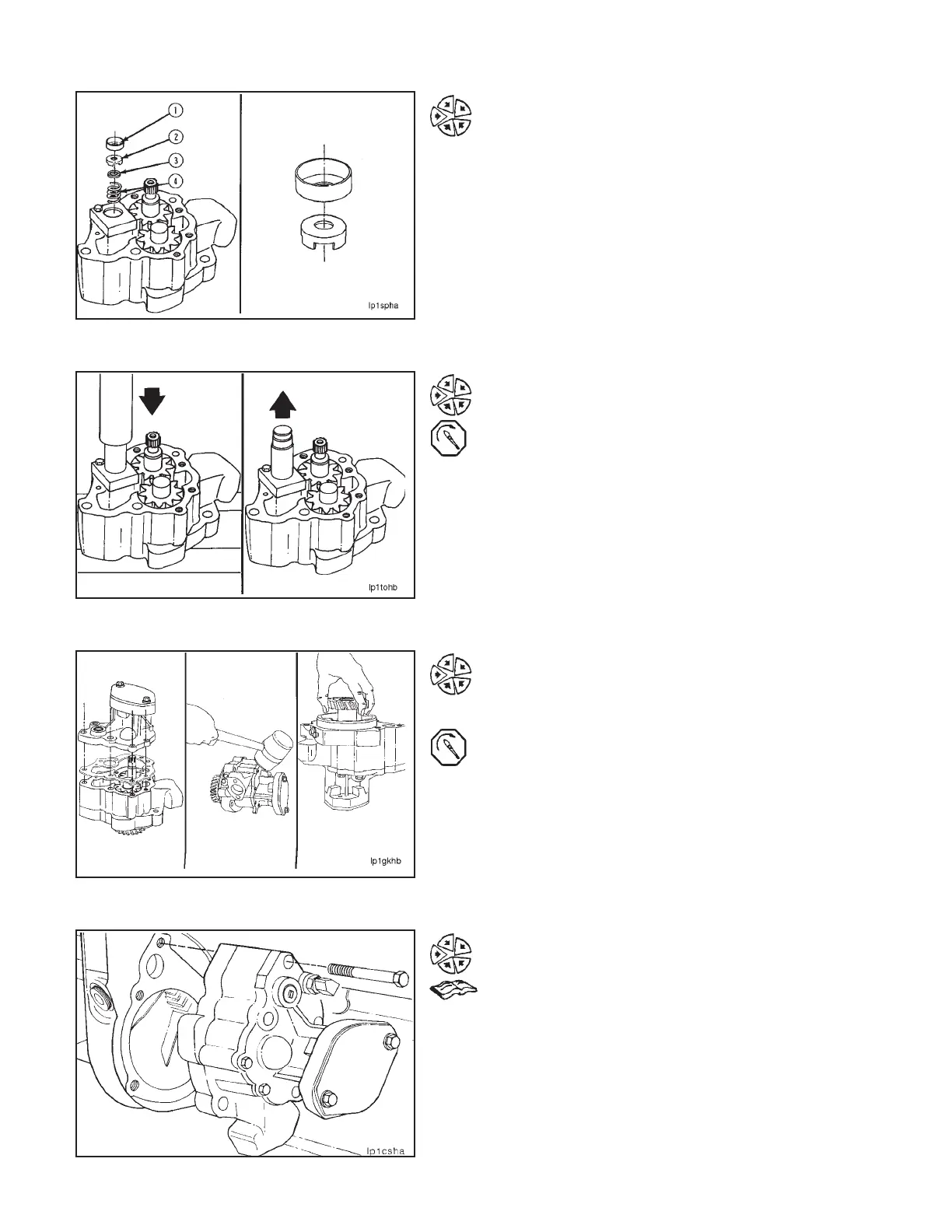

Install the spring (4), the washer (3), the valve disc (2), and
the retainer plug (1) in the bore in the locating plate.
Make sure the prongs on the disc are down (toward the
washer) and the cup side of the retainer plug is up (toward
the mandrel).
Install the small end of the valve mandrel, Part No.
3376012, in the bore in the locating plate.
Press the mandrel with an arbor press until the large
diameter of the mandrel is against the locating plate.
Install a new gasket and the cover to the pump body. Tap
the cover lightly with a rubber hammer to push the cover
over the dowels.
Install the capscrews and the washers, and tighten.
Torque Value: 27 N•m [20 ft-lb]
Turn the gear to make sure they rotate freely.
Install the lubricating oil pump. Refer to Procedure 2-13.
High Lubricating Oil Pressure Relief Valve (2-14) Section 2 - Lubricating System
N14Page 2-38
