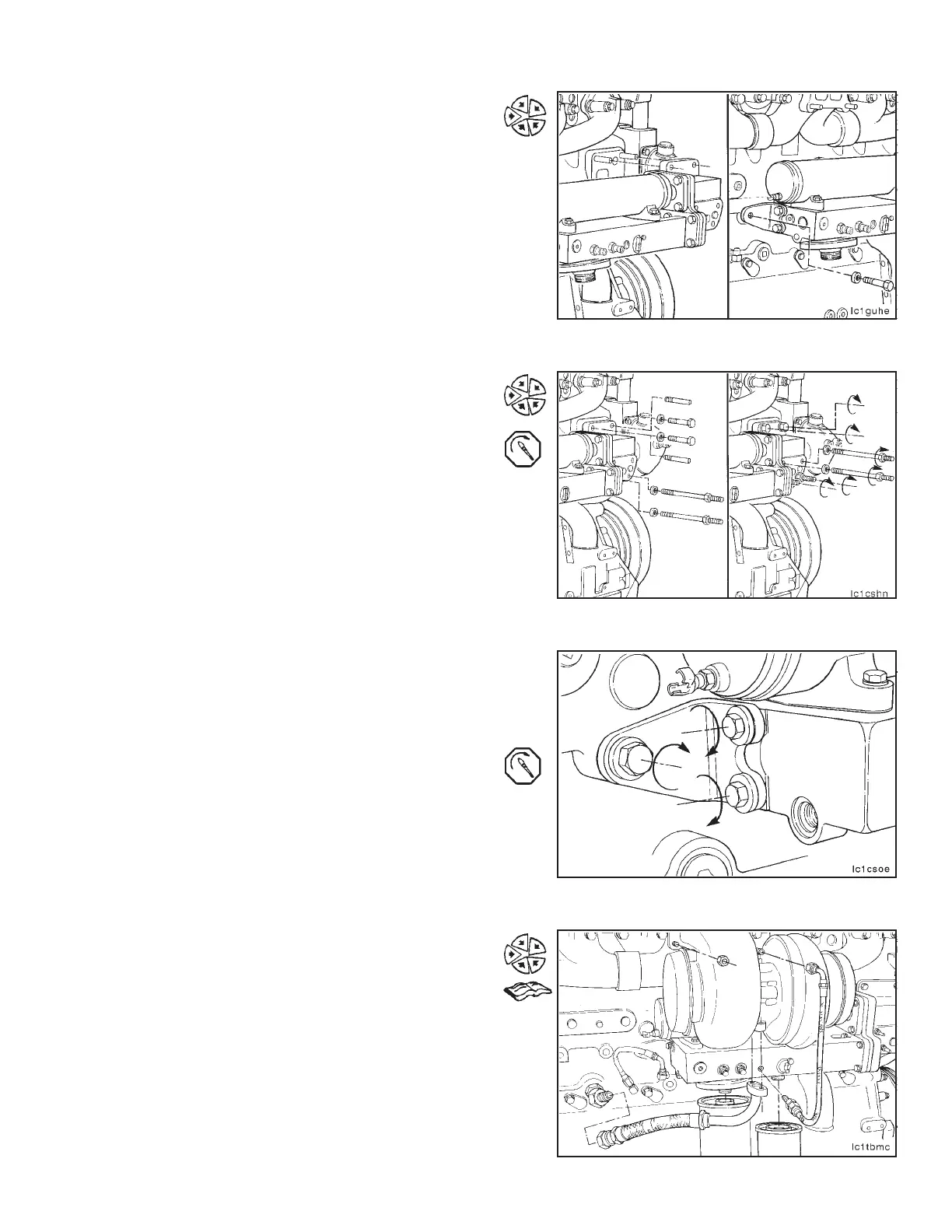

Install the oil cooler assembly over the guide studs, and
push it against the cylinder block.
Install the oil cooler support bracket capscrew. Do not
tighten at this time.
Install four of the support mounting capscrew, and re-
move the two guide studs.
Install the two remaining capscrews, and tighten all sup-
port capscrews.
Torque Value: 47 N•m [35 ft-lb]
First, loosen the two capscrews which hold the oil cooler
support bracket to the rear of the oil cooler housing.
Then, alternately and evenly tighten the block mounting
capscrew and the oil cooler housing capscrews. (Begin-
ning with the block mounting capscrew.)
Torque Value: 47 N•m [35 ft-lb]
Install the turbocharger, turbocharger oil supply tube, the
bypass filter return tube, and the turbocharger drain tube.
Fill and install a new oil filter and coolant filter. Refer to
Procedures 1-06 and 2-03.
Section 2 - Lubricating System Lubricating Oil Cooler Assembly (2-19)
N14 Page 2-61
