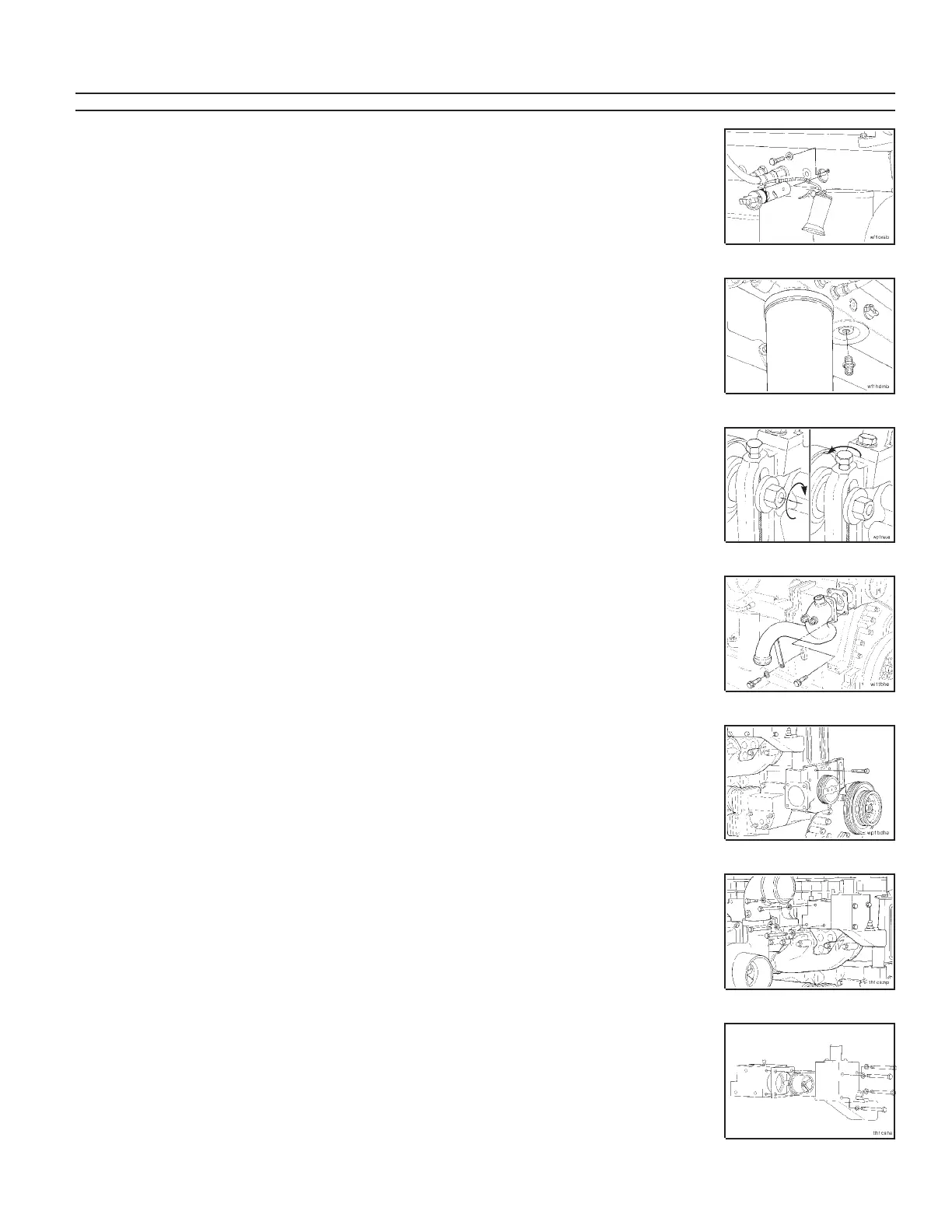

Water Filter Head Shutoff Valve Retaining
Capscrew 1-29 20 N•m 15 ft-lb
Water Filter Head Threaded Male Insert 1-28 47 N•m 35 ft-lb
Water Pump Idler Pulley Shaft Lock Nut 1-25 68 N•m 50 ft-lb
Water Pump Inlet Tube (From Radiator) 1-27 47 N•m 35 ft-lb
Water Pump Mounting Capscrews 1-27
• Step 1 14 N•m 10 ft-lb
• Step 2 27 N•m 20 ft-lb
• Step 3 47 N•m 35 ft-lb
Thermostat Housing Assembly 1-30 47 N•m 35 ft-lb
to Rocker Housing Mounting Capscrews
Thermostat Housing Cover to Housing
Mounting Capscrews 1-30 47 N•m 35 ft-lb
Section V - Engine Component Specifications Component Specifications and Torque Values
N14 Page V-5
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
