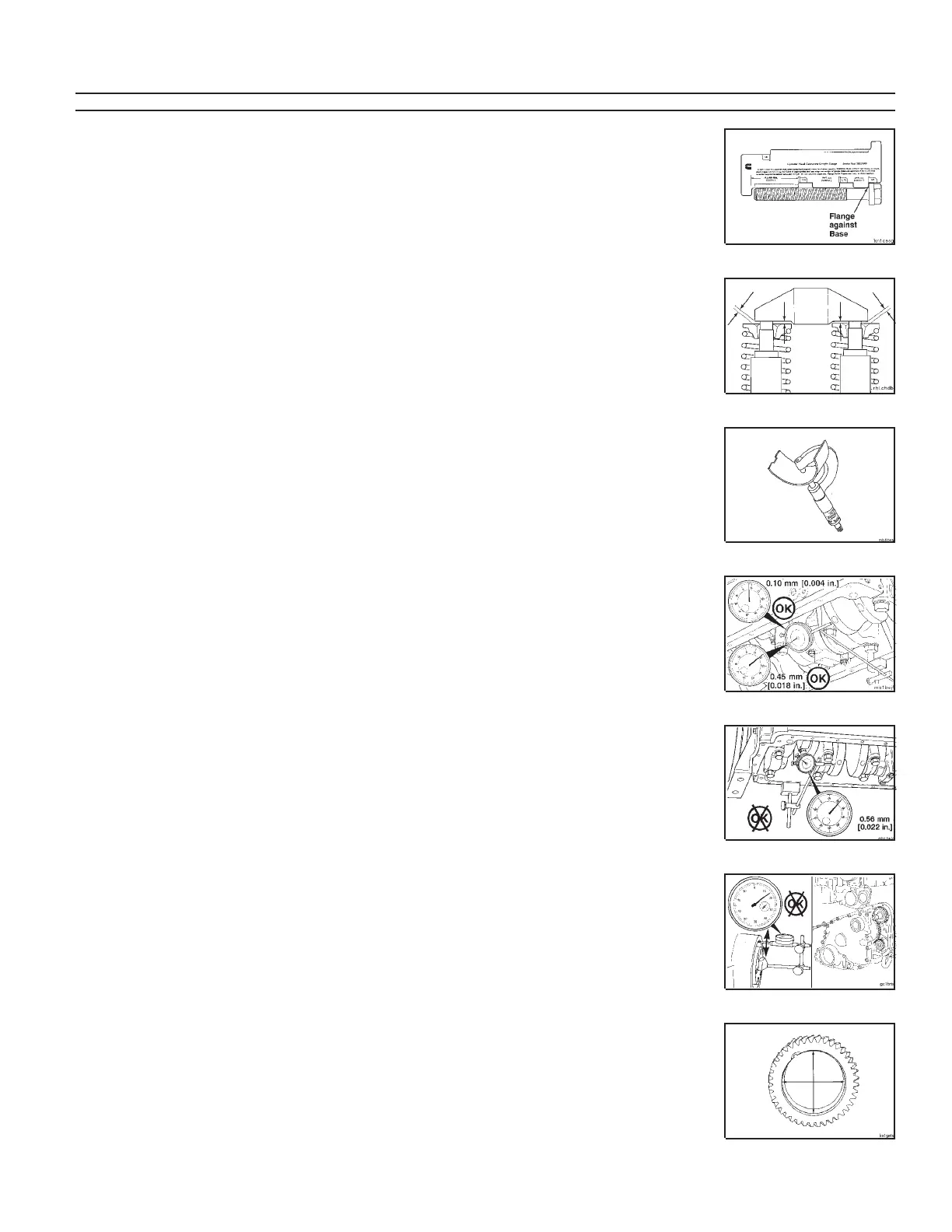

Cylinder Head Capscrew Length 7-18 185.6 mm MAX 7.130 in
Crosshead to Valve Spring Retainer
Clearance 7-18 0.65 mm MIN 0.025 in
Main Bearing Shell Thickness (Standard 7-23 3.086 mm MIN 0.1215 in
Bearings) 3.145 mm MAX 0.1238 in
Crankshaft Axial End Play (New Crank 7-23 0.10 mm MIN 0.004 in
and New Thrust Bearings) 0.45 mm MAX 0.018 in
Crankshaft Axial End Play (Worn Limit) 7-23 0.10 mm MIN 0.004 in
0.56 mm MAX 0.022 in
Crankshaft Front Seal Bore Concentricity
TIR 7-34 0.38 mm MAX 0.015 in
Crankshaft Gear Bore Inside Diameter 7-38 95.394 mm MIN 3.7557 in
95.415 mm MAX 3.7565 in
Section V - Engine Component Specifications Component Specifications and Torque Values
N14 Page V-27
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
