10 Introduction AccuVision
®
AV6010 Long-Range Camera System Manual
Accu-Sort Systems, Inc. 01-AV6010_Introduction_R10.doc
Camera Module
The camera module includes the following key components:
LED Illumination
Camera Head
Distributed Computing Module (DCM)

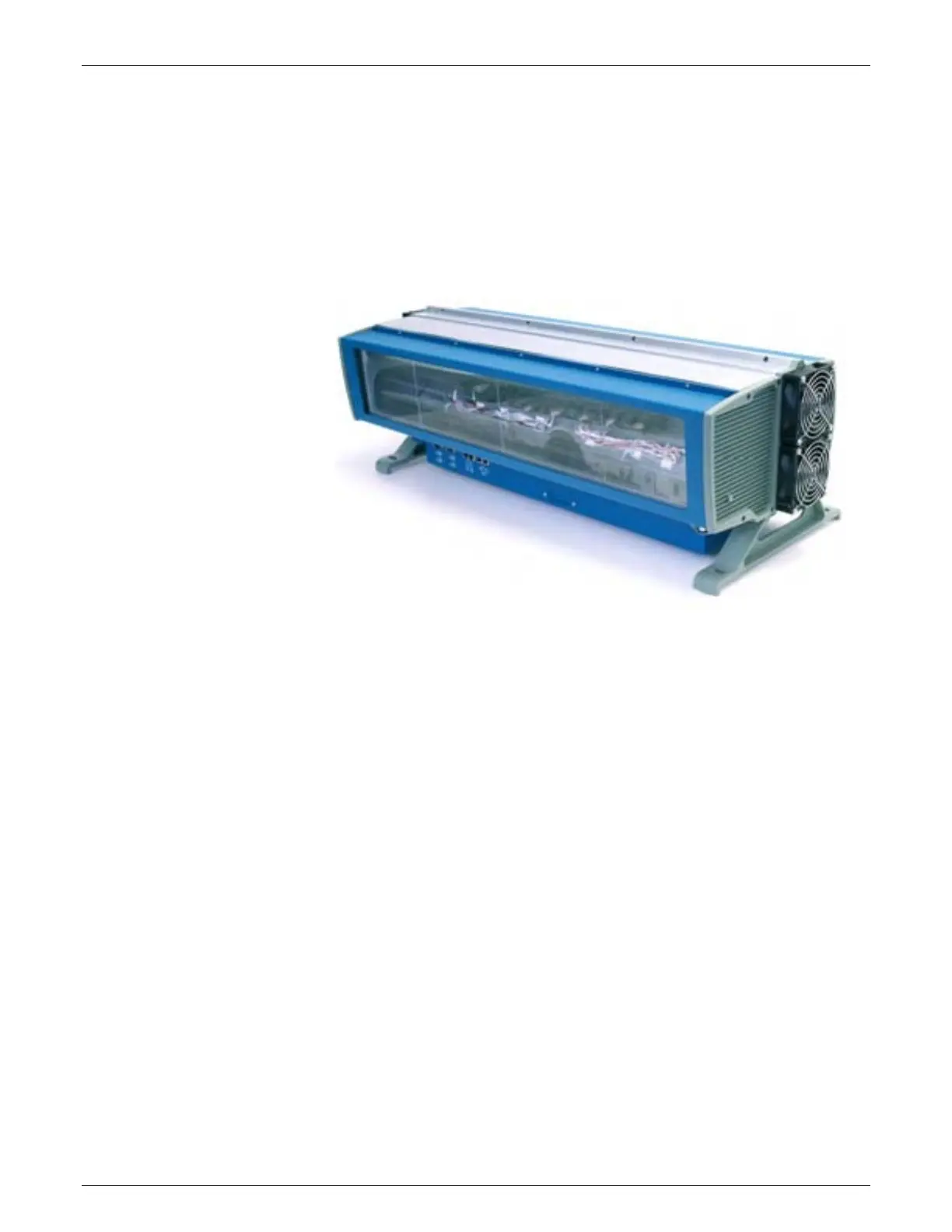

Figure 1-2: AccuVision AV6010 Camera Module
The LED illumination floods the scanning area with light as packages are
conveyed past the AV6010 camera(s). There are several models equipped
with either a 30-inch [762 mm] or 42-inch [1066 mm] illumination module.
The AV6010’s camera head acquires and transfers image data to the DCM
for decoding and processing. The decoded results are then sent to a host
device via Ethernet and/or serial interface.
