RangeFinder Power Supply Connection
RangeFinder power supply connection procedure:
1. Connect the power supply DC input
connector into the RangeFinder’s
PWR IN (DC input).
2. Plug the AC power cord into the
power supply.
3. Plug the AC power cord into the
power source.
4. For multi-camera systems: If a
Power Distribution Box (PDB) is
used, it can be plugged into the
outlet box on the right side of the
PDB.

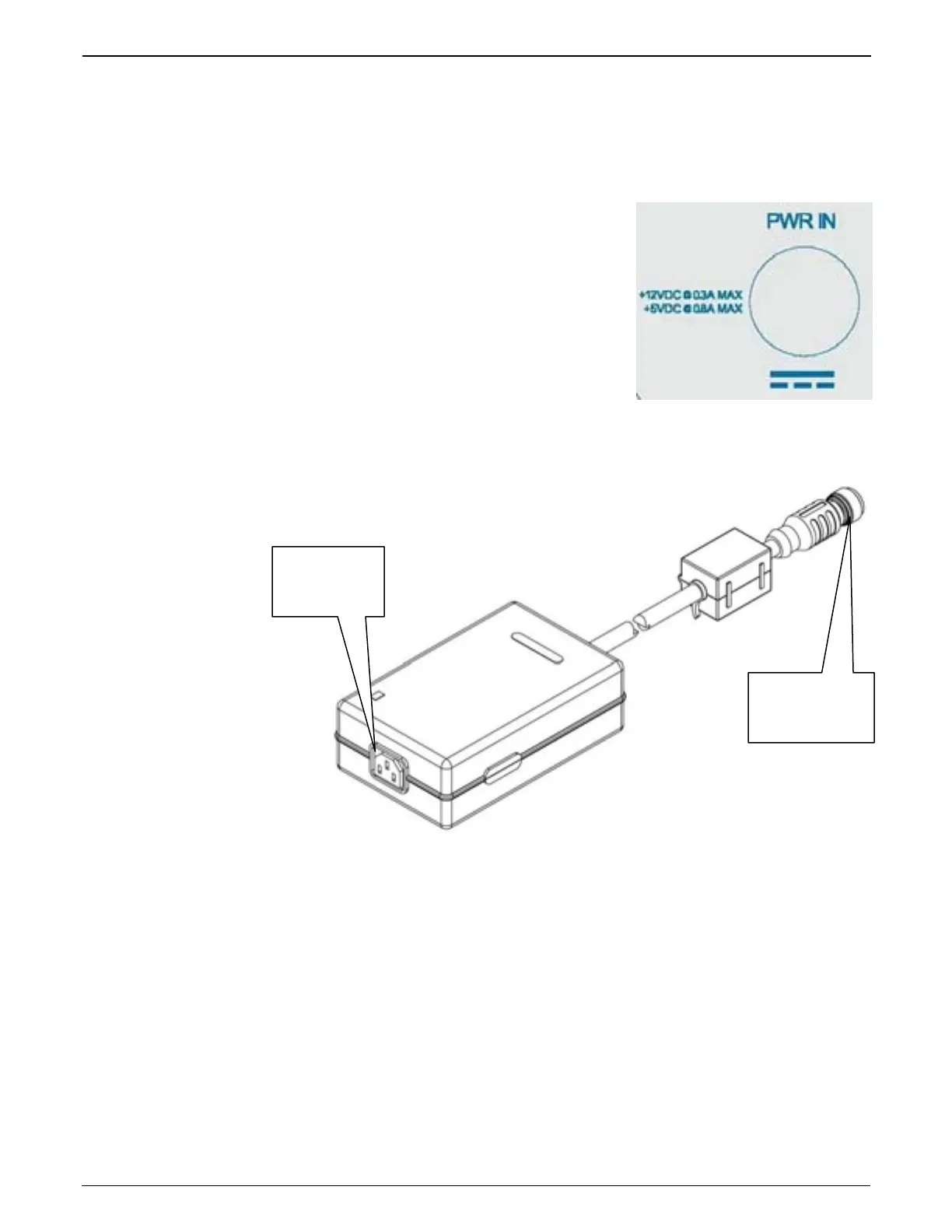

RangeFinder PWR IN
Insert AC
Power Cord
Connect to
RangeFinder
PWR IN
