12 Introduction AccuVision
®
AV6010 Long-Range Camera System Manual
Accu-Sort Systems, Inc. 01-AV6010_Introduction_R10.doc
RangeFinder Module
The RangeFinder module includes the following:
RangeFinder Module
RangeFinder Power Supply
Mounting and adjustment brackets

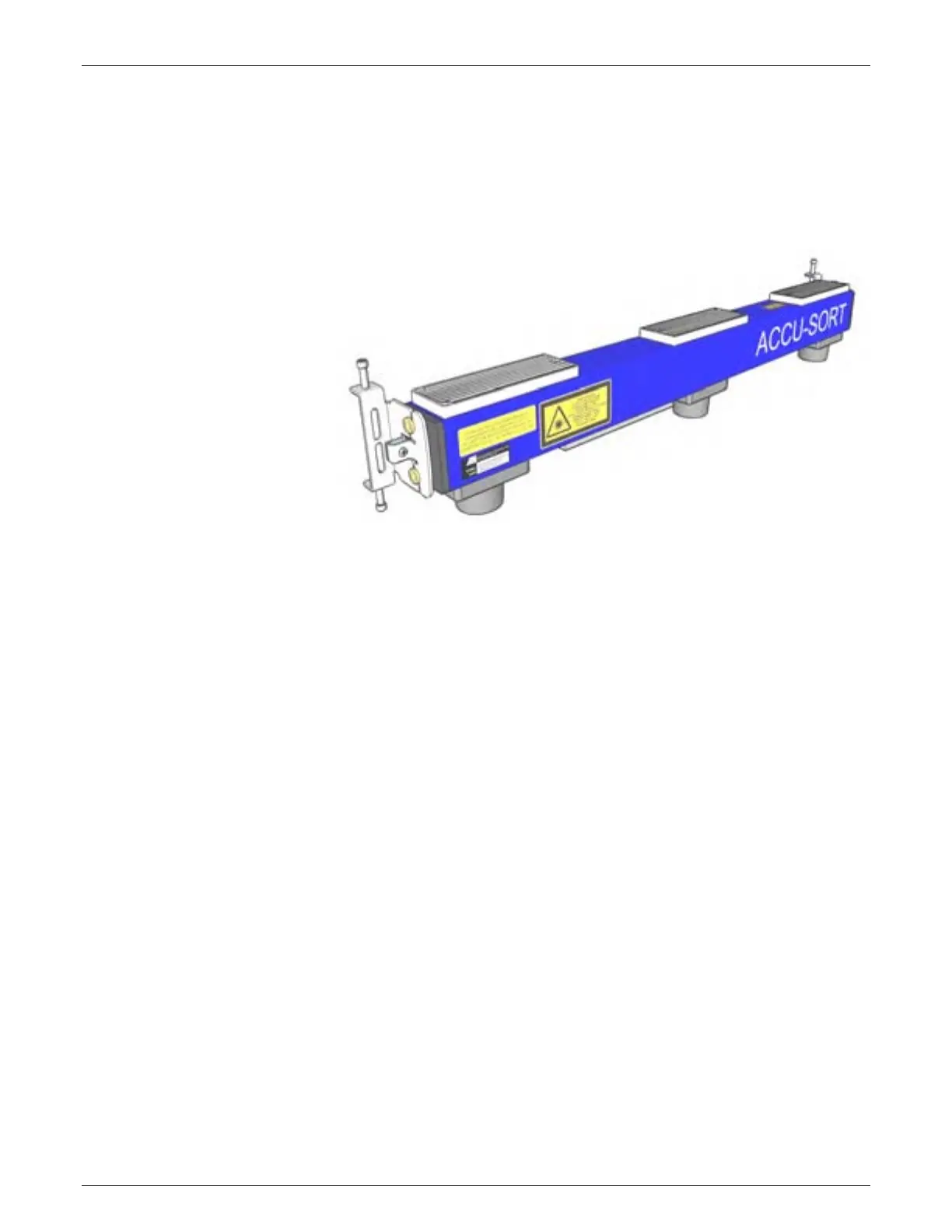

Figure 1-3: RangeFinder for AV6010 Camera Systems
The RangeFinder is used to detect the presence of products as they enter
the scanning area as well as report the package positions/heights and
sequence number to all cameras in the system. RangeFinders used in
dimensioning are calibrated to have an accuracy of 0.1, 0.2 or 0.5-inch.
