28 Mechanical Installation AccuVision
®
AV6010 Long-Range Camera System Manual
Accu-Sort Systems, Inc. 03-AV6010_Mechanical_Installation_R10.doc
Installation Sequence
NOTE: Everything should be MECHANICALLY INSTALLED before
performing any ELECTRICAL INSTALLATION. See Chapter 4 for electrical
installation details.

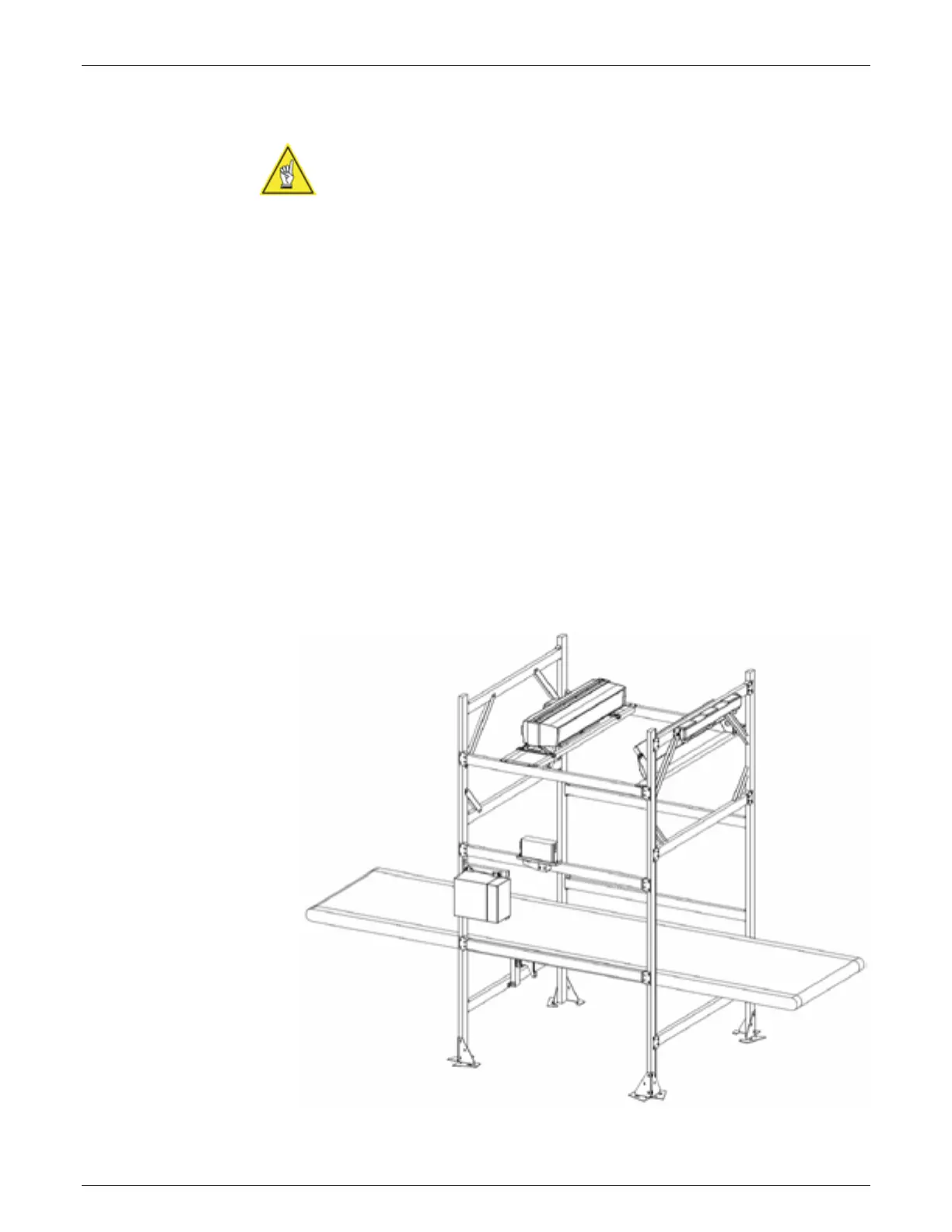

Installing a Single Camera System
To install a single camera system, follow this sequence of steps:
Complete mechanical installation.
Review the details of your application’s requirements.
Determine and mark the mounting location.
If an Accu-Sort structure is used, mounting locations are pre-marked.
Erect mounting structure or other supporting frame.
Mount AV6010 Camera and mirror in its position on the structure.
Mount AV6010 RangeFinder in its position on the structure.
Mount / position any optional devices included with your system.
VisionCapture Image Capture System including network switch,
monitor/keyboard with trackball and mounting arm, UPS
Complete electrical installation. (See Chapter 4.)
Setup your AV6010. (See Chapter 5.)
Check operations. (See Chapter 6.)
