Power Distribution Box for Multi-Camera Systems
Applications using two or more cameras will use the Power Distribution Box
(PDB, 111063) to handle power for the RangeFinder, up to six cameras and
the optional VisionCapture/Image Depot Server (IDS).

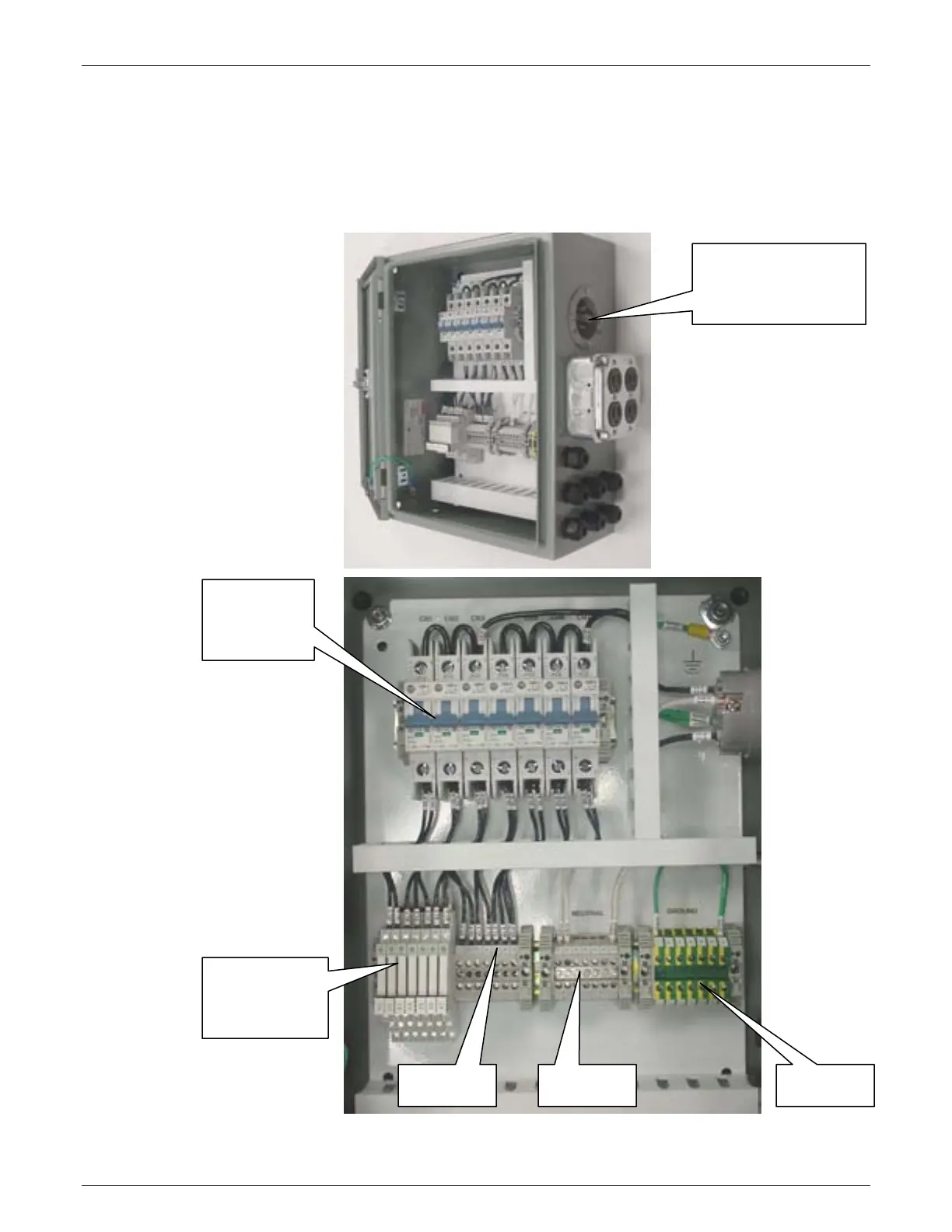

Power Distribution Box Connections
POWER INLET
(4-Wire Grounded)
30 AMP 125/250 VAC
NEMA L14-30P
CIRCUIT
BREAKERS
CB1 – CB7
(10A)
POWER
MONITORING
CIRCUITS
K1 – K7
TB1 (HOT) NEUTRAL GROUND
