AccuVision
®
AV6010 Long-Range Camera System Manual Chapter 3 39
03-AV6010_Mechanical_Installation_R10.doc Accu-Sort Systems, Inc.
Mirror Installation
Prerequisites:
A flat surface (preferably the conveyor belt)
Application specifications and mounting structure drawings
Determine mirror position as it relates to the camera and reading
direction
Remember: Mirrors must be angled toward the conveyor.
(Mirror adjustment to the correct angle is covered in Chapter 5.)
Tools Required:
Socket driver (1/2”) battery powered (recommended)
Tools (optional): Tape measure

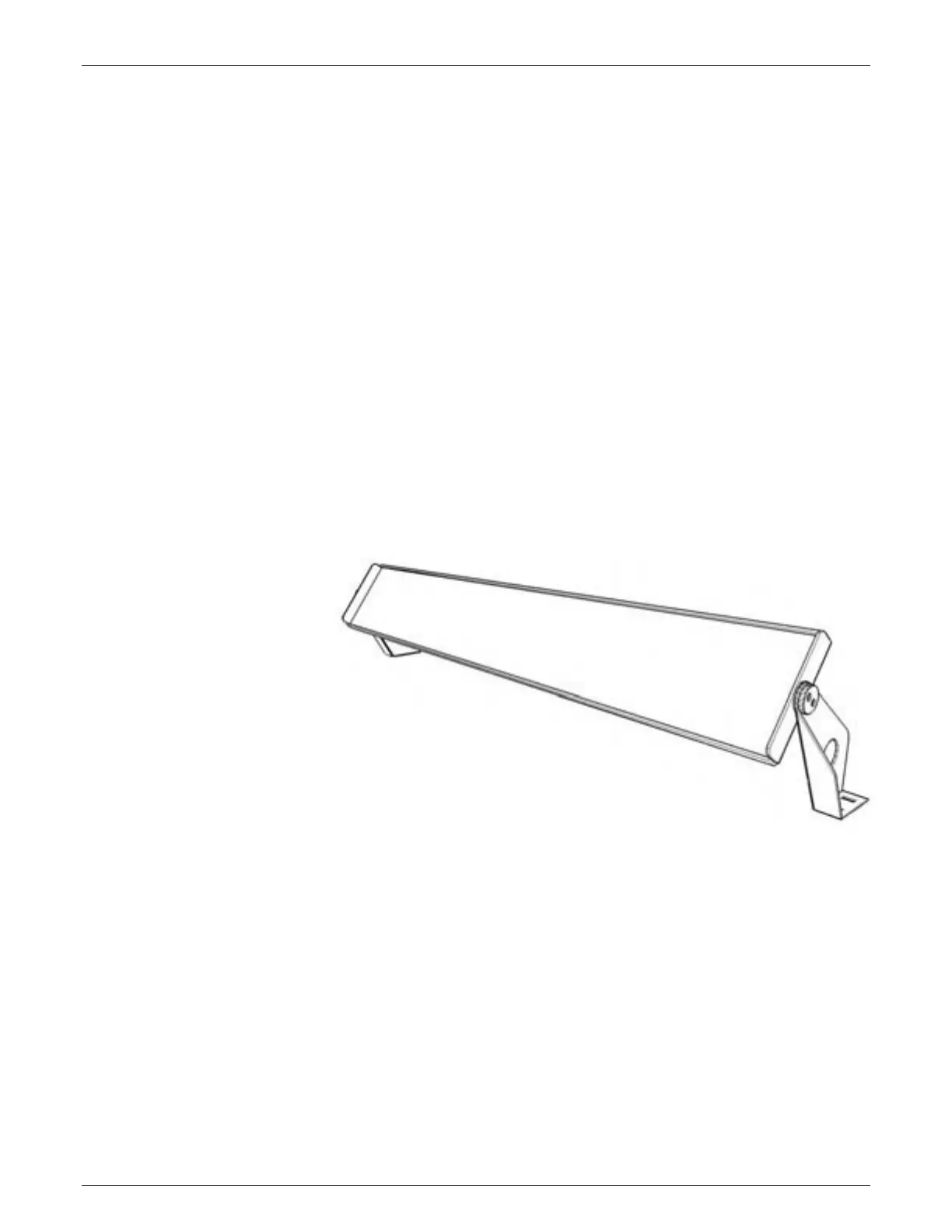

The mirror assembly ships pre-assembled. If not, attach the brackets to both
sides of mirrors before proceeding to the next step.
