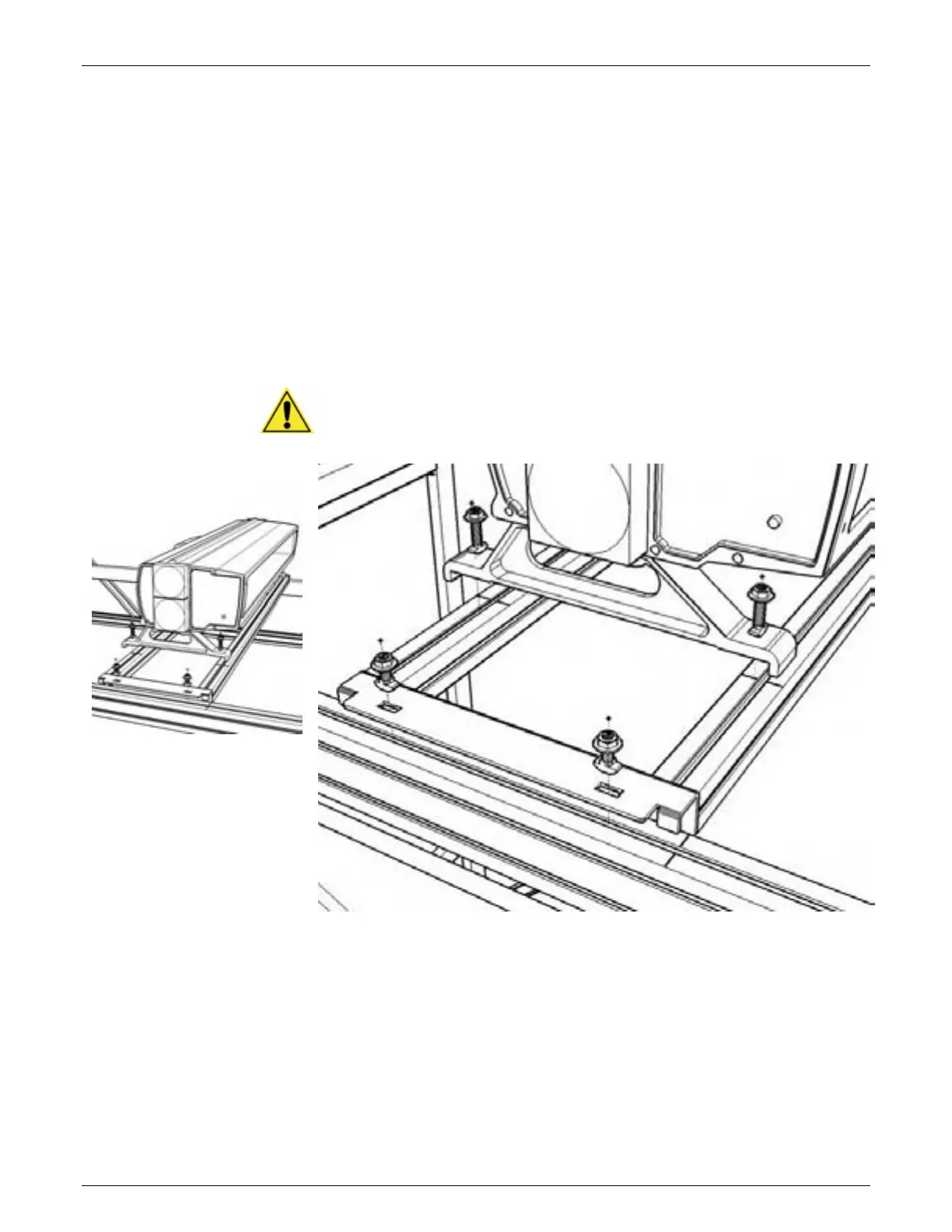

To install a Bottom-read camera:
1. Underneath the conveyor, place the camera on the sled, aligning the
camera mounting feet with the alignment marks.
2. Attach with front-loading hardware. Do not over-tighten, which allows for
adjustment during setup (if necessary), but assure the camera will not
slide in the sled’s channel when it is lifted into position.
3. Assure camera is positioned with illumination side facing in the correct
direction before lifting into position.
4. Use two people to lift the camera/sled assembly into position as marked
on the structure side rails.
5. Attach with front-loading hardware. Do not over-tighten.
IMPORTANT: For safety reasons, it is recommended that two people lift
the camera into position on the mounting structure.
