AccuVision
®
AV6010 Long-Range Camera System Manual Chapter 3 37
03-AV6010_Mechanical_Installation_R10.doc Accu-Sort Systems, Inc.

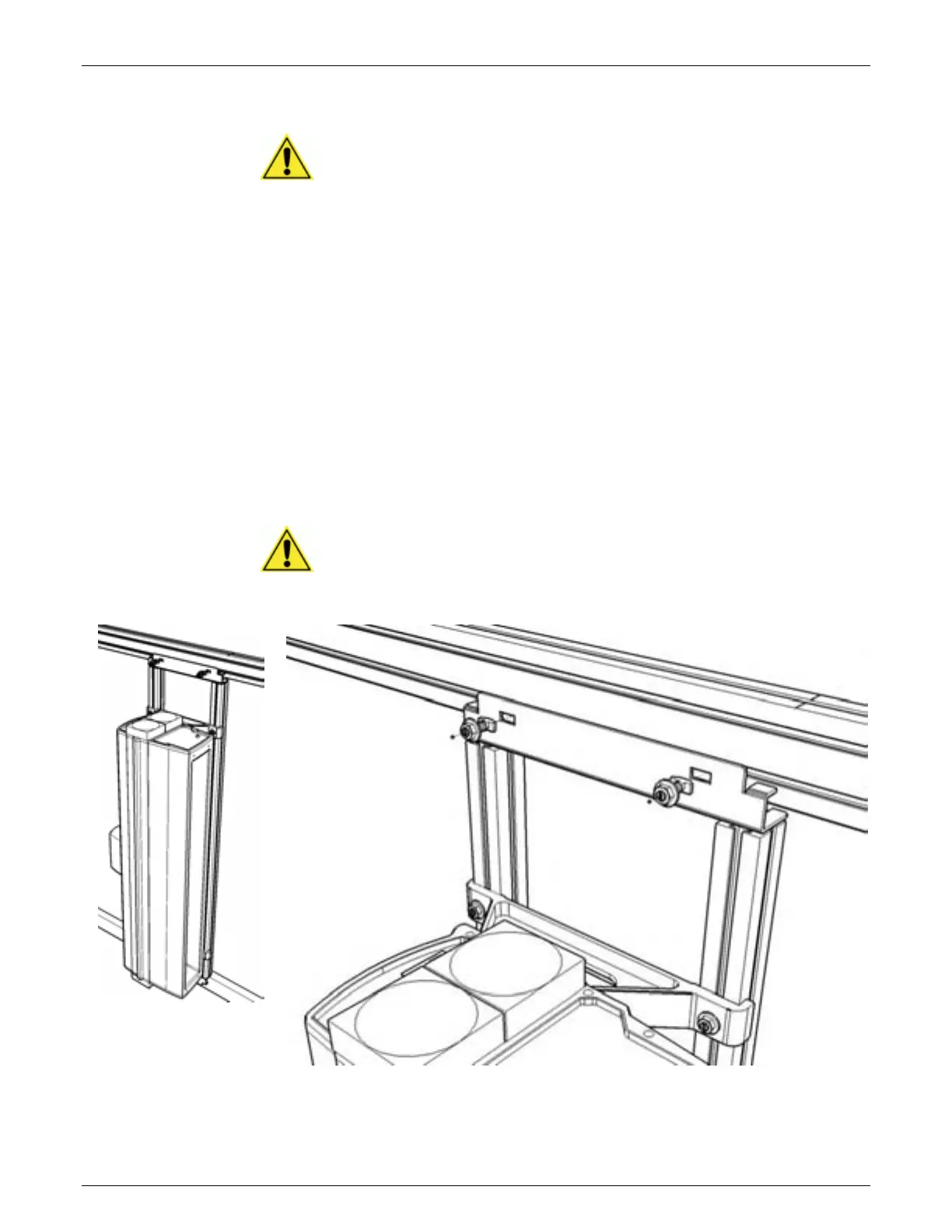

To install a Side/Quadrant camera:
IMPORTANT: Depending on the application, the side-read camera may be
installed on the inside of the mounting structure rather than the outside.
Check your application structure drawings before mounting the side-read
camera or mirror.
1. Place the camera on the sled, aligning the camera mounting feet with the
alignment marks.
2. Attach with front-loading hardware. Do not over-tighten, which allows for
adjustment during setup (if necessary), but assure the camera will not
slide in the sled’s channel when it is lifted into position.
3. Assure camera is positioned with illumination side facing in the correct
direction before lifting into position.
4. Use two people to lift the camera into position as marked on the
structure side rails. Insert the tabs of the sled’s upper bracket into the
structure channel, and then slowly rest the lower bracket into position.
5. Attach with front-loading hardware, beginning with the sled’s upper
bracket. Do not over-tighten.
IMPORTANT: For safety reasons, it is recommended that two people lift
the camera into position on the mounting structure.
