218 Dimensioning AccuVision
®
AV6010 Long-Range Camera System Manual
Accu-Sort Systems, Inc. A7-AV6010_Dimensioning_R13.doc
Certified Dimensioning Installation Requirements
Top-Read Camera
Top-read cameras used in a certified dimensioning system must have the
DCM and camera head compartments properly sealed with a wire
certification seal running through the hole in the camera head back cover
and DCM latch shown in Figure G-1. Additionally, the correct specifications
label must be applied to the bottom of the DCM (Figure G-11 and G-13).

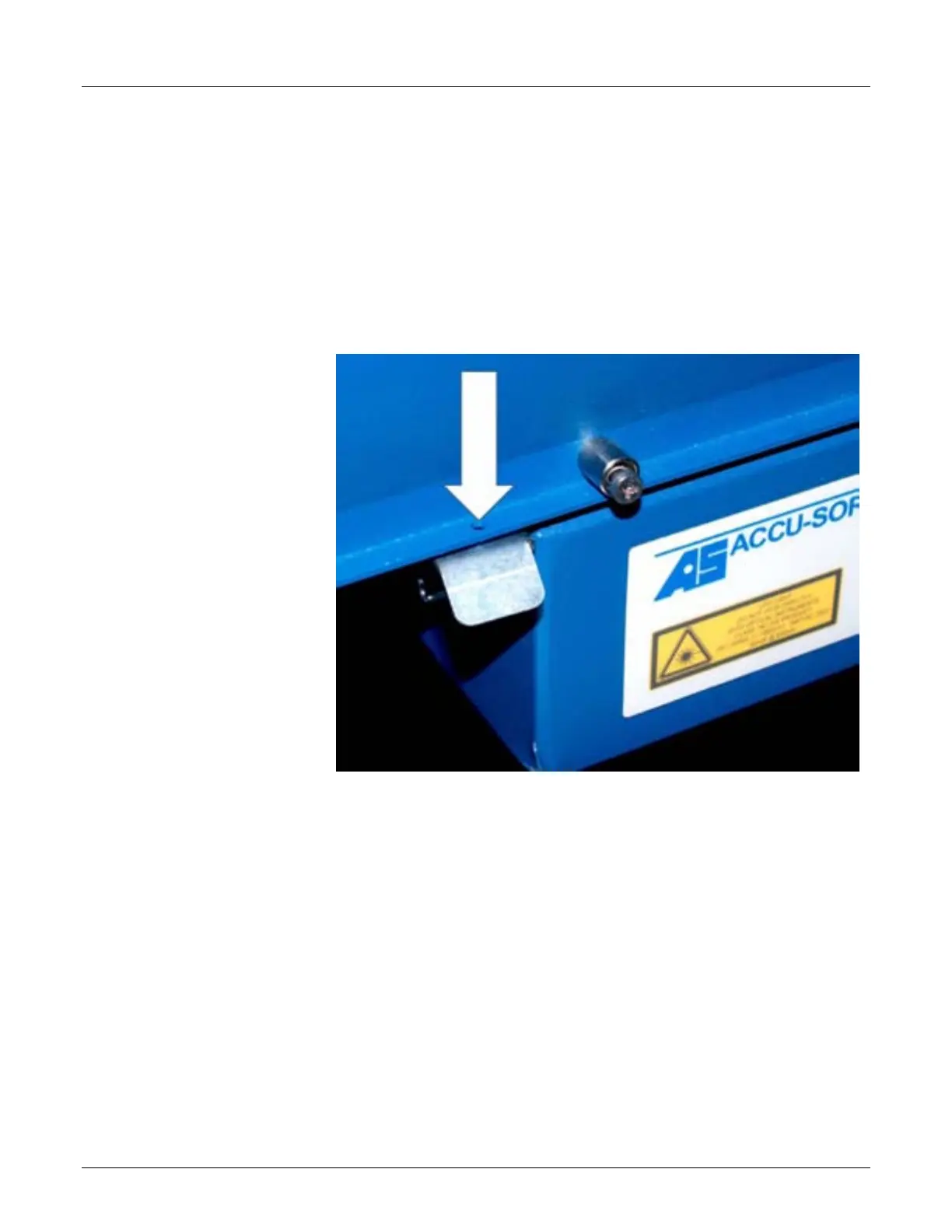

Figure G-1: Top-Read Camera with DCM and Camera Head Seal Hole
