Communications > (Camera) > Host Network > Network Messaging
Functionality is identical for Serial Ports and Host Network Ports 1 through 4.
Host Network > Network Messaging Descriptions
Selection Definition

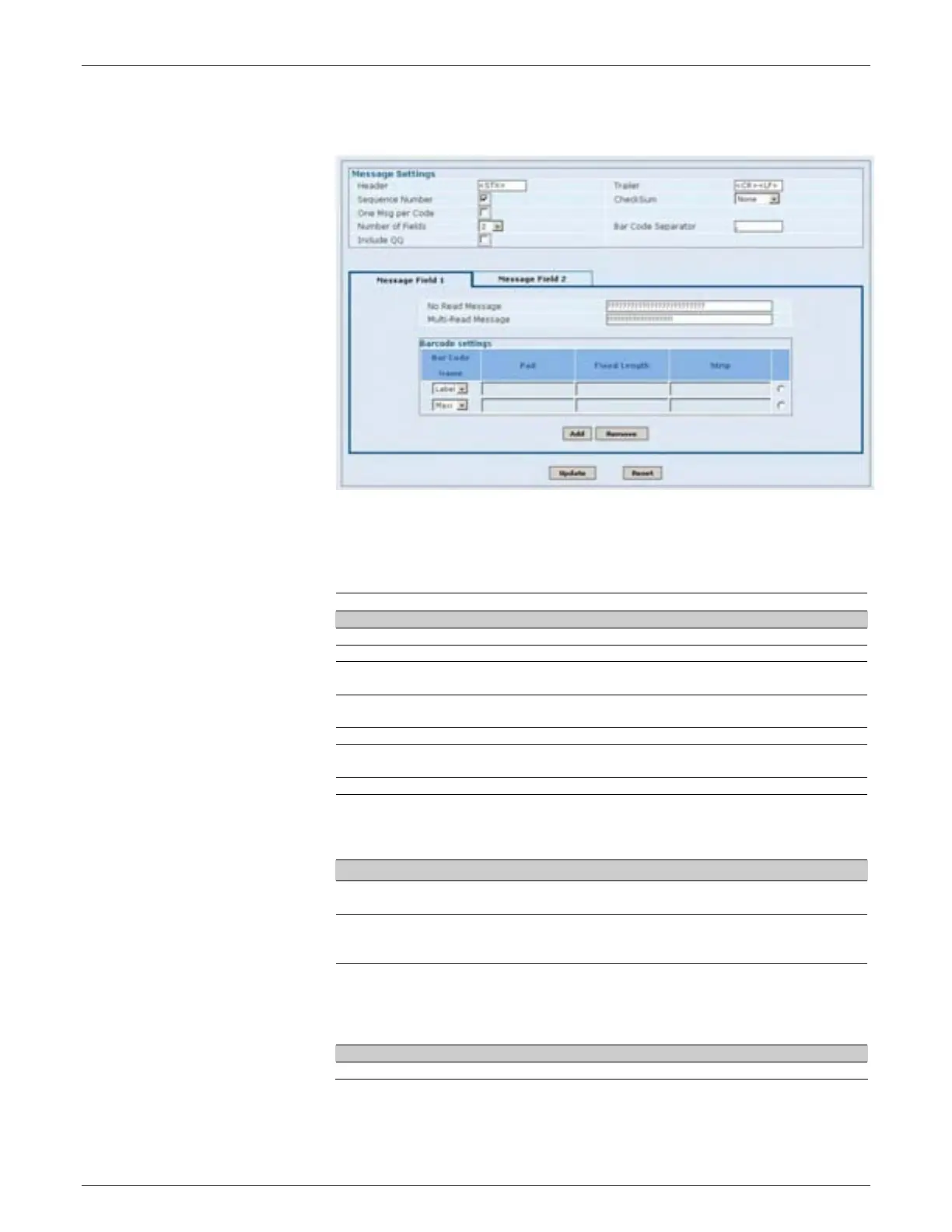

Message Settings
Header Set the message header.
Trailer Set the message trailer.
Sequence Number Transmits a sequential number with each message
transmitted when checked.
CheckSum Transmits a calculated checksum providing a level of
security for the message.
One Message per Code Only includes one message per code when checked.
Number of Fields This option defines the number of fields in the transmit
message.
Bar Code Separator Define the separator to appear between bar codes.
Include QQ Includes the QQ which is the quality or number of times
the AV6010 decoded the bar code during the trigger
cycle.
Provides the QQ Delimiter field when checked.
Message Field 1
No Read Message Customer selectable character that will be transmitted
when no bar code was read
Multi-Read Message Customer selectable character that will be transmitted
when the AV6010 decodes bar codes with the same
symbology and the same number of characters
Bar Code Settings Select a Bar Code Name from the drop-list. (These are
the codes that appear in the Active Symbologies list.)
The padding, fixed length and stripping are shown in the
fields. Use the option buttons to Add or Remove the
code from Message Field 1.
Message Field 2
Note: Same functionality as Message Field 1.
