CONVEYOR DIRECTION
RECEIVER ASSEMBLY
PHOTOEYE 2
(SEE NOTE 2)
PHOTOEYE 1
(SEE NOTES 2 AND 3)
EMITTER ASSEMBLY
5.00
±.05
(SEE NOTE 1)
4.50
9.25
.25
4.50
9.25
.25
80.00 MAX.
INCORRECT LOCATION
(BEAMS PASSING THROUGH
OPENING IN TRAY BASE
WILL PRODUCE MULTIPLE
TRIGGERS PER TRAY)
CORRECT LOCATION
(INSTALLED TO PERMIT THE BEAMS
TO BE BROKEN ONLY ONE TIME PER TRAY)
5.00
±.05
2X
4.00
C
L
OF SLOT
EMITTER BEAM
TARGET AREAS
NOTES:
1) EMITTER BEAMS MUST BE PARALLEL AND PLACED AS SHOWN.
2) CABLE LENGTH: 12 FEET.
3) PHOTOEYE 1 IS ALWAYS UPSTREAM.
RECEIVER ASSEMBLY
N/A
N/A
N/A

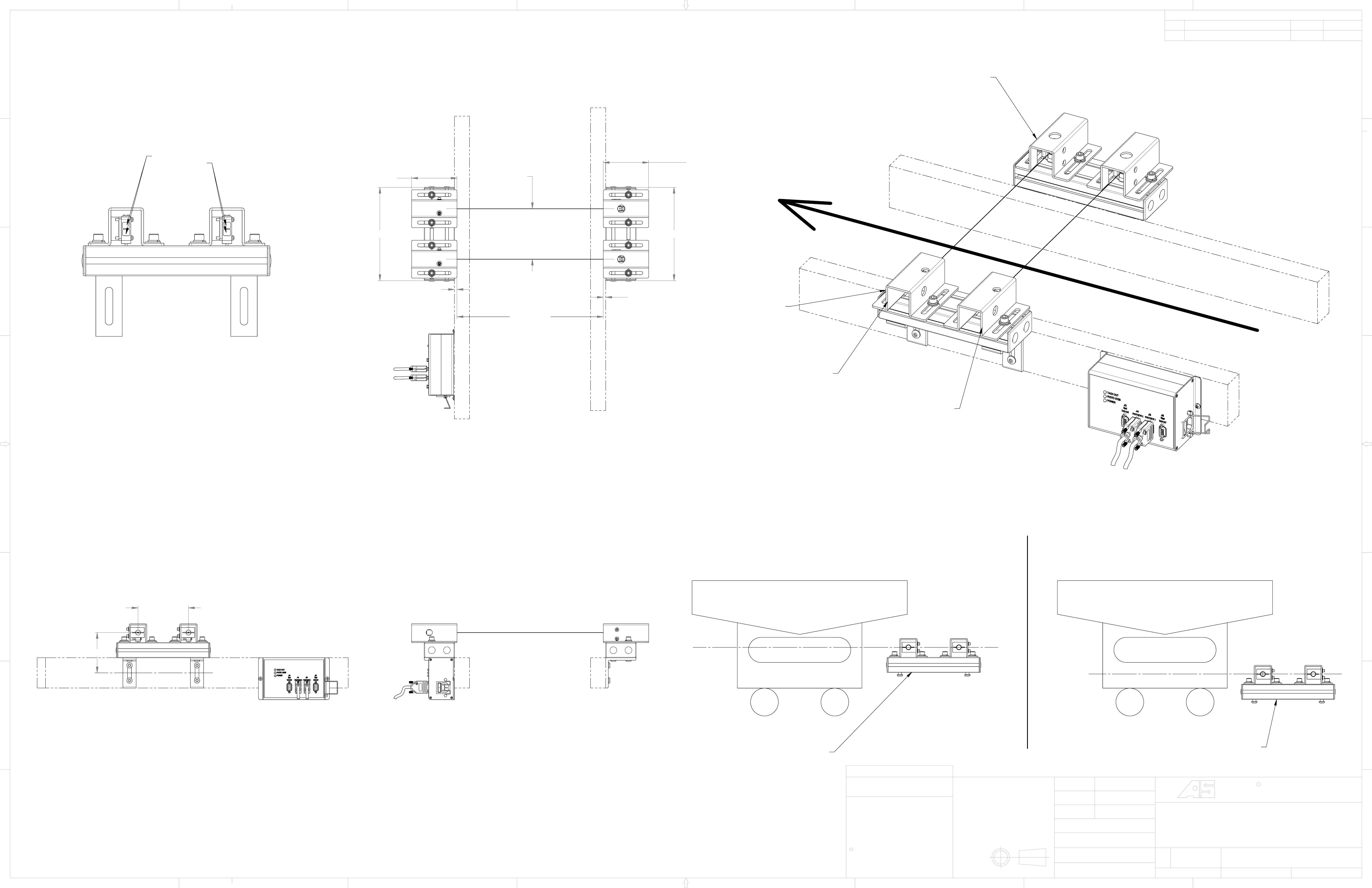

PHOTOEYE TACH GENERATOR
MOUNTING AND INSTALLATION
R
DWG NO.
CAGE CODE
SIZE
SHEET
SOLIDWORKS
CAD SYS.
NONE
53830
D
SCALE
112873
DATE
AS
DRAWN
DATE
DATE
XXX
AS
MECH ENG
E-
CHKD
ENGR
DEPT.
CUSTOMER
CONTRACT #
01/21/10
XX.XX.XX
01/21/10
TELFORD, PA 18969 USA
ACCU-SORT SYSTEMS, inc.
1
2
3
4
H
G
F
E
5
6
7
D
C
B
8
A
H
G
F
E
D
C
B
A
1
2
3
4
5
6
7
8
0112873001
1 OF 1
ANGULAR
X±1.00°
.X±0.10°
.XX±0.01°
[METRIC]
[X±2.500]
[.X±0.500]
[.XX±0.130]
[.XXX±0.013]
INCH
.X±.1000
.XX±.0200
.XXX±.0050
.XXXX±.0005
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES [MILLIMETERS]
ALL ANGLES ARE 90°
ALL C-CINKS ARE 82° INCLUDED ANGLE
ALL BEND RELIEFS TO SUIT
TOLERANCES:
PART NO.
FRACTIONS ±1/4
FT.,IN ±1"
THIS DOCUMENT IS PROVIDED FOR A
SPECIFIC PURPOSE AND THE DISCLOSED
INFORMATION REMAINS OUR PROPERTY.
IT MAY NOT BE DISCLOSED, COPIED,
OR REPRODUCED, EXCEPT FOR THE
SPECIFIC PURPOSE, WITHOUT ACCU-SORT’S
PRIOR APPROVAL. THIS NOTICE MUST
APPEAR ON ANY COPY OR REPRODUCTION
OF THIS DOCUMENT.
2007 ACCU-SORT SYSTEMS, INC.
C
THIS IS NOT A CONTROLLED COPY UNLESS
STAMPED “CONTROLLED COPY” IN RED
REMOVE SHARP EDGES AND BURRS
08-696
02/02/10
DATE
CHANGE
AS
BY
REVISION
01
REV
