AV6010 Long-Range Camera Manual Chapter 4 49
04-AV6010_Electrical_Installation_R12.doc Accu-Sort Systems, Inc.

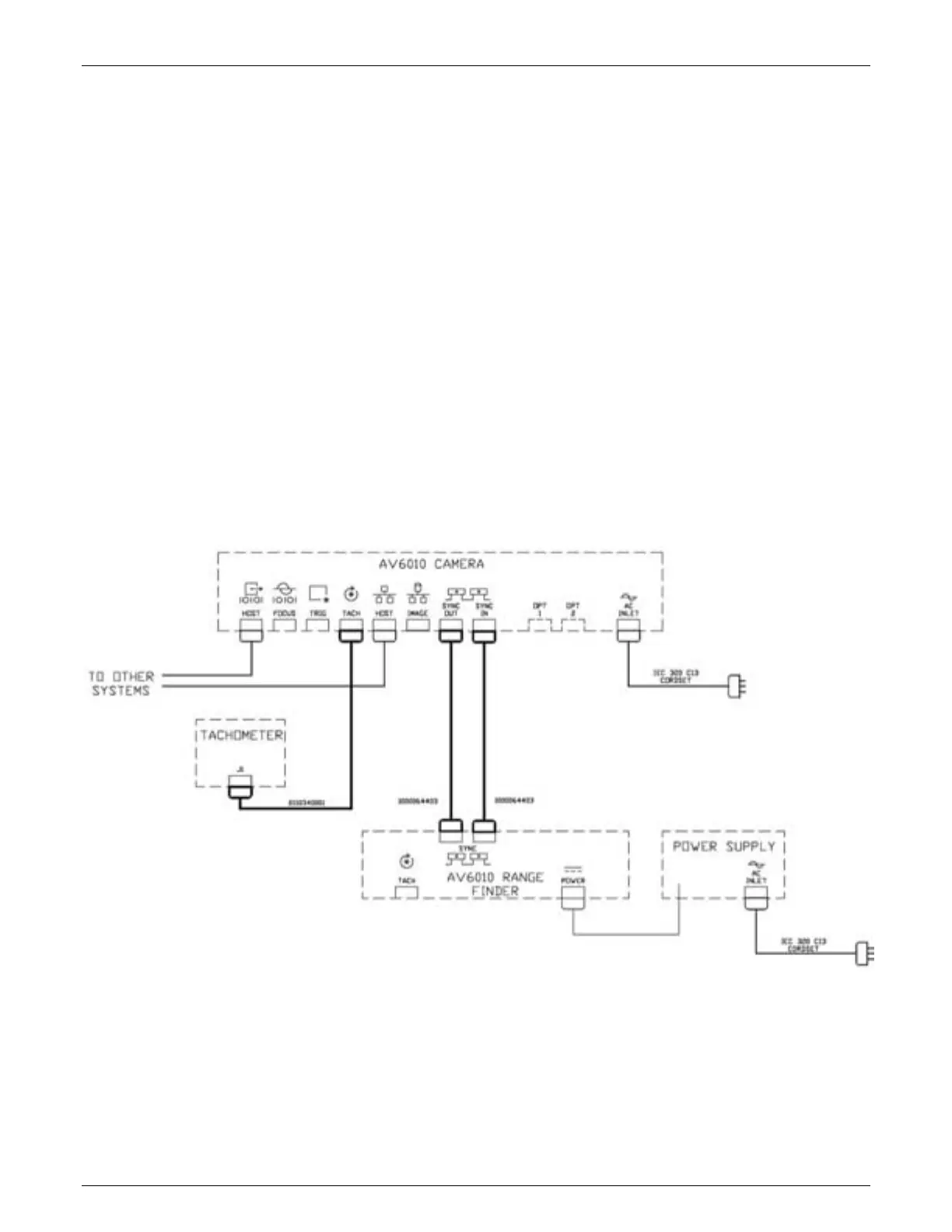

5. Connect one of the RangeFinder’s SYNC ports to the camera’s SYNC
IN.
6. Connect the other RangeFinder SYNC port to the camera’s SYNC OUT.
7. Connect the tachometer to the camera’s TACH port (if required).
(Do NOT connect the tachometer to the RangeFinder’s TACH port.)
8. Connect the photoeye to the TRIG port (if required).
9. Connect AV6010 HOST communications, as needed
(e.g., HOST serial port or HOST Ethernet network).
10. Connect the VisionCapture / IDS Server’s LAN connection to the
camera’s IMAGE port (if required).
11. Connect the optional FAST Monitor Server’s LAN connection to the
camera’s HOST network port (if required).
12. Complete any additional connections shown on the installation-specific
drawings (if provided).
NEXT STEP: Setup / check AV6010 operations. (See Chapter 5.)
