DEVICE SETTINGS | CAMERA #N | IMAGING
PRODUCT REFERENCE GUIDE 189

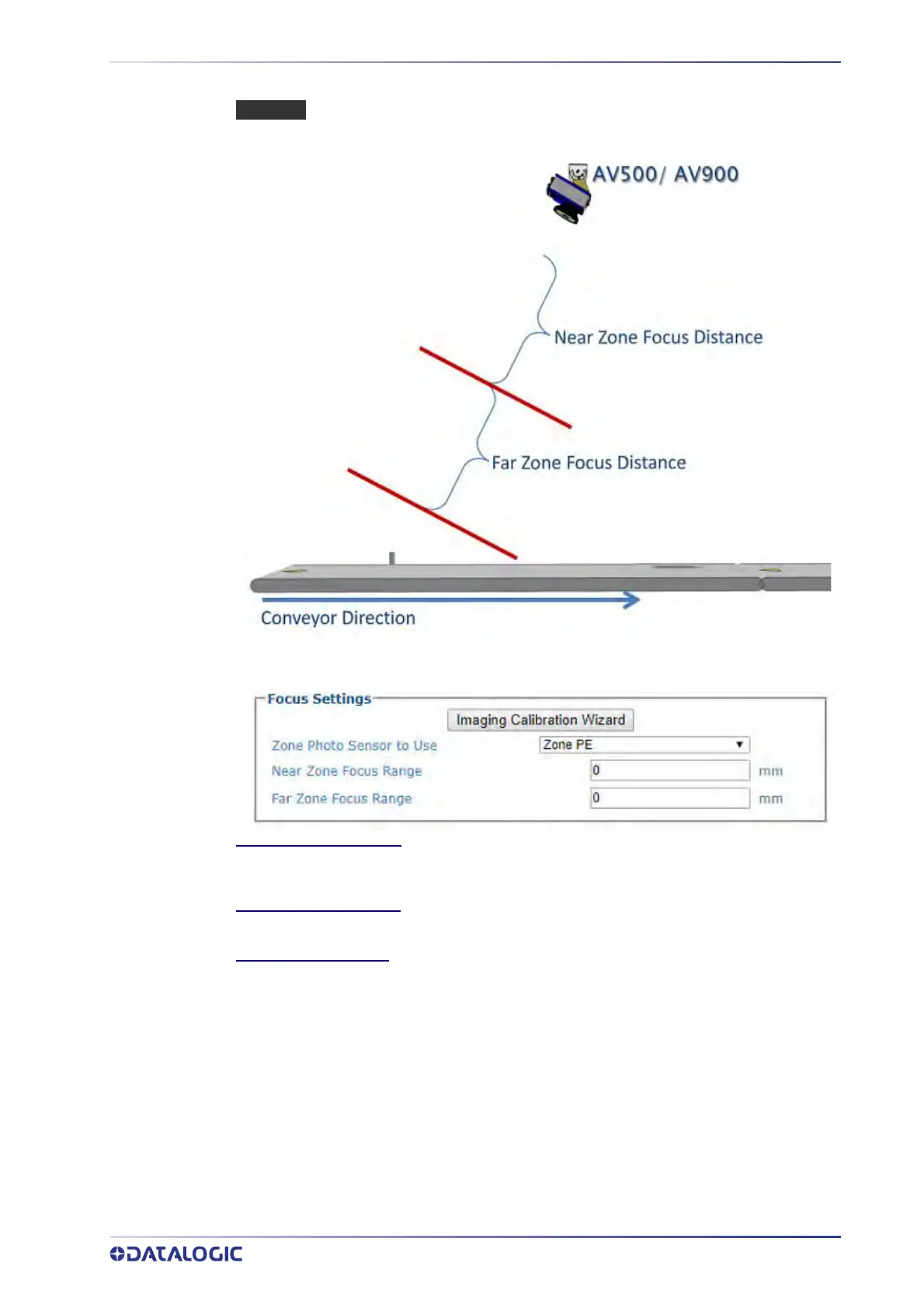

DUAL ZONE
When Dual Zone focus is selected it allows you to define two zones to which a photo sensor
will focus the camera.
Zone Photo Sensor to Use
Select from the drop-down to Identify which relay input is used to provide the change of focus
zone.
Near Zone Focus Distance
Enter the distance from the back of the camera to the mid range of the near zone.
Far Zone Focus Distance
Enter the distance from the back of the scanner to the Mid range of the far read zone.
