DEVICE SETTINGS | CAMERA #N | IMAGING
PRODUCT REFERENCE GUIDE 191

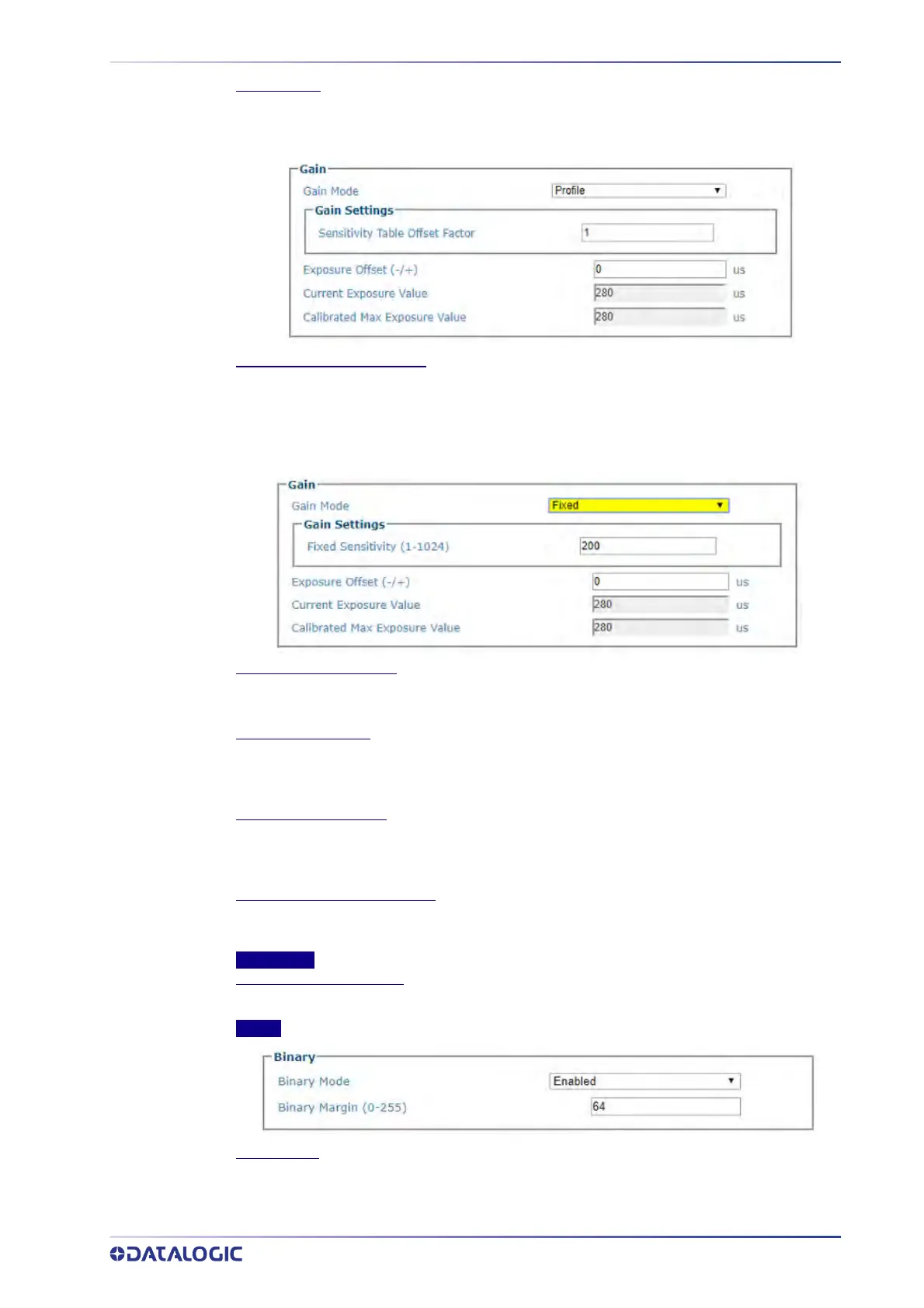

Gain Settings
If Profile is selected, a Sensitivity Table offset Factor will adjust the gain according to the focus
mode selected. This option is used when position sensor is enabled.
Sensitivity Table Offset Factor
Sensitivity Table Offset Factor, when used with the Dual Zone Focus Mode option will adjust
the gain in the near zone.
If
Fixed is selected, the Sensitivity is adjusted to optimize the image intensity and is
maintained through the DOF.
Fixed Sensitivity (1-1024)
Enter a value (between 1-1024) In the Fixed Sensitivity configuration the Sensitivity is adjusted
to optimize the image intensity and is maintained through the DOF.
Exposure Offset (-/+)
Enter the offset to be applied to the value in “Calibrated Maximum Exposure”. The result of
“Calibrated Maximum Exposure” +/- “Maximum Exposure Offset” cannot be lower than 20 or
greater than the value in “Calibrated Maximum Exposure”
Current Exposure Value
The result of “Calibrated Maximum Exposure” +/- “Maximum Exposure Offset”. This is the
maximum amount of exposure the camera will use. Lower values will reduce motion blur at
higher belt speeds.
Calibrated Max Exposure Value
The maximum exposure value calibrated in the factory. The “Current Maximum Exposure
Value” cannot not exceed this value
Illumination
Illumination Stay-On Time
Enter the number of seconds the illumination should remain on.
Binary
Binary Mode
Select Enable or Disable from the drop-down. Binary Mode enabled will use the least
significant bit of each pixel to create a binary image.
