OFF ON OFF ON Reference 5 Pb.05
OFF ON ON OFF Reference 6 Pb.06
OFF ON ON ON Reference 7 Pb.07
ON OFF OFF OFF Reference 8 Pb.08
ON OFF OFF ON Reference 9 Pb.09
ON OFF ON OFF Reference 10 Pb.10
ON OFF ON ON Reference 11 Pb.11
ON ON OFF OFF Reference 12 Pb.12
ON ON OFF ON Reference 13 Pb.13
ON ON ON OFF Reference 14 Pb.14
ON ON ON ON Reference 15 Pb.15
If the frequency source is multi-reference, the value 100% of Pb.00 to Pb.15 corresponds to
the value of P0.05 (Maximum frequency).
Besides the multi-speed function, the multi-reference can be also used as the PID setting
source or the voltage source for V/F separation, satisfying the requirement on switchover of
different setting values.

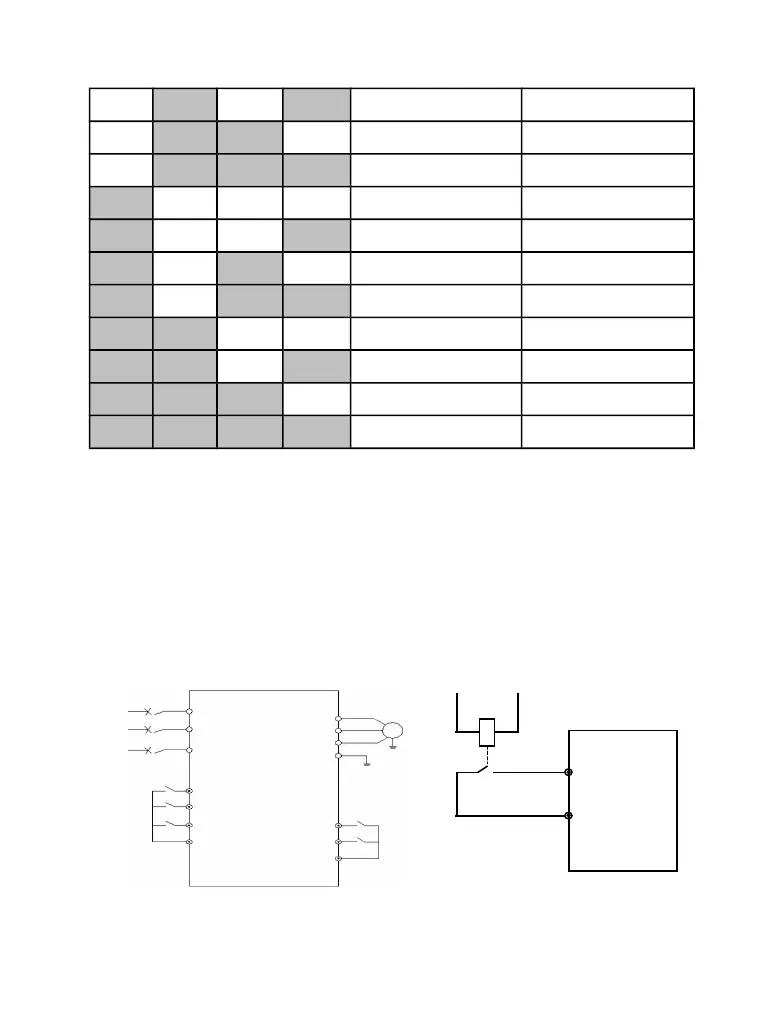

Figure 6-16 multi-reference wiring diagrams
AC drive
X5
COM
KM
Powe
rer
Fuse
R(R)
S
T(T)
K1
K2
K3
AC drive
U
V
W
PE
K7
K8
FWD
REV
COM
COM
M
Figure 6-17 External fault input
diagram
