degdrive DGI900 - Description of Main Circuit Input;Output Terminals

31
Fig. 3-3 Main circuit wiring
3.4.1 Main Circuit Wiring
Main Circuit input/output terminals, shown as Table 3-1

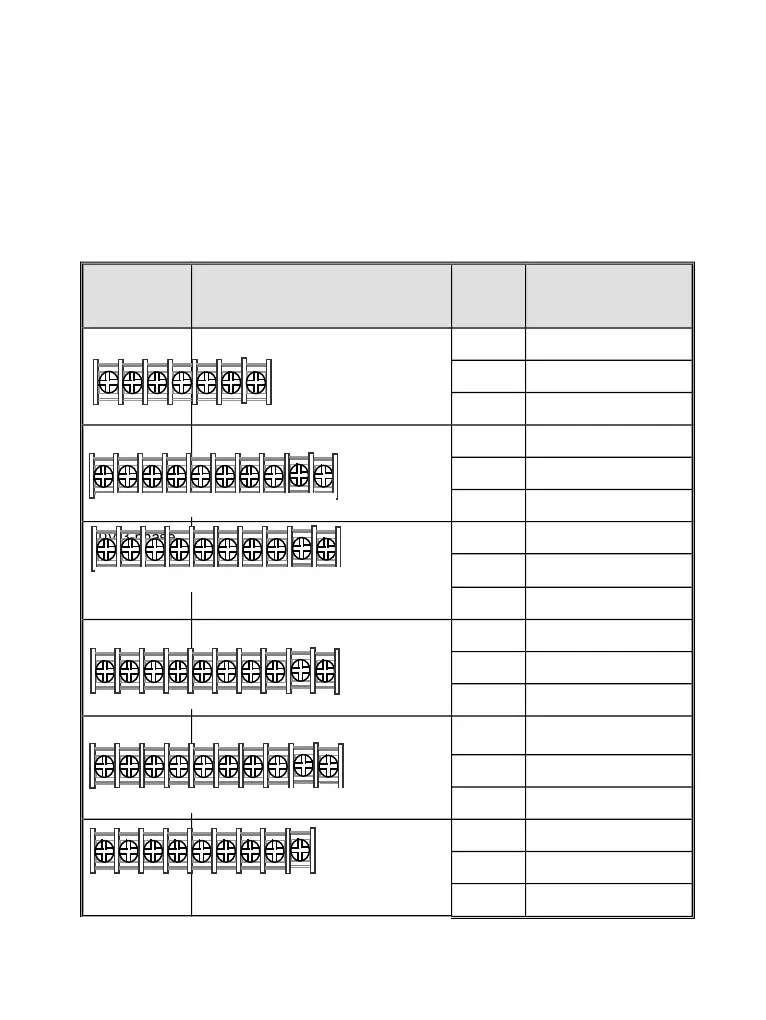

Table 3-1 Description of Main Circuit input/output terminals
Apply to
Main circuit terminal
Terminal
name
Function
220V 1-phase
0.4KW~2.2KW
L1、L2 220V 1-phase Input terminals
U、V、W 3-phase Output terminals’
E Earthing
380V 3-phase
0.75KW~2.2KW
R、S、T 380V 3-phase Input terminals
U、V、W 380V 3-phase Output terminals
P+、PB Braking resistor wiring terminals
380V 3-phase
2.2KW~22KW
R、S、T 380V 3-phase Input terminals
U、V、W 380V 3-phase Output terminals
P+、PB Braking resistor wiring terminals
380V 3-phase
30KW~37KW
R、S、T 380V 3-phase Input terminals
U、V、W 380V 3-phase Output terminals
P+、PB Braking resistor wiring terminals
380V 3-phase
45KW~220KW
R, S, T 380V 3-phase Input terminals
U, V, W 380V 3-phase Output terminals
P+, PB Braking resistor wiring terminals
380V 3-phase
280KW~630KW
R , S, T 380V 3-phase Input terminals
U, V, W 380V 3-phase Output terminals
(+), (-) Braking resistor wiring terminals
L1
L2
U
V
W
E
(+) (-) R S T E U V W PB
(+) (-) PB R S T E U V W
R
S
E
PB
U
U
(+)
(+)
T
V
W
R S T P (+) (-) U V W E
R
S U
V
W
(-)
(+)
T
E
