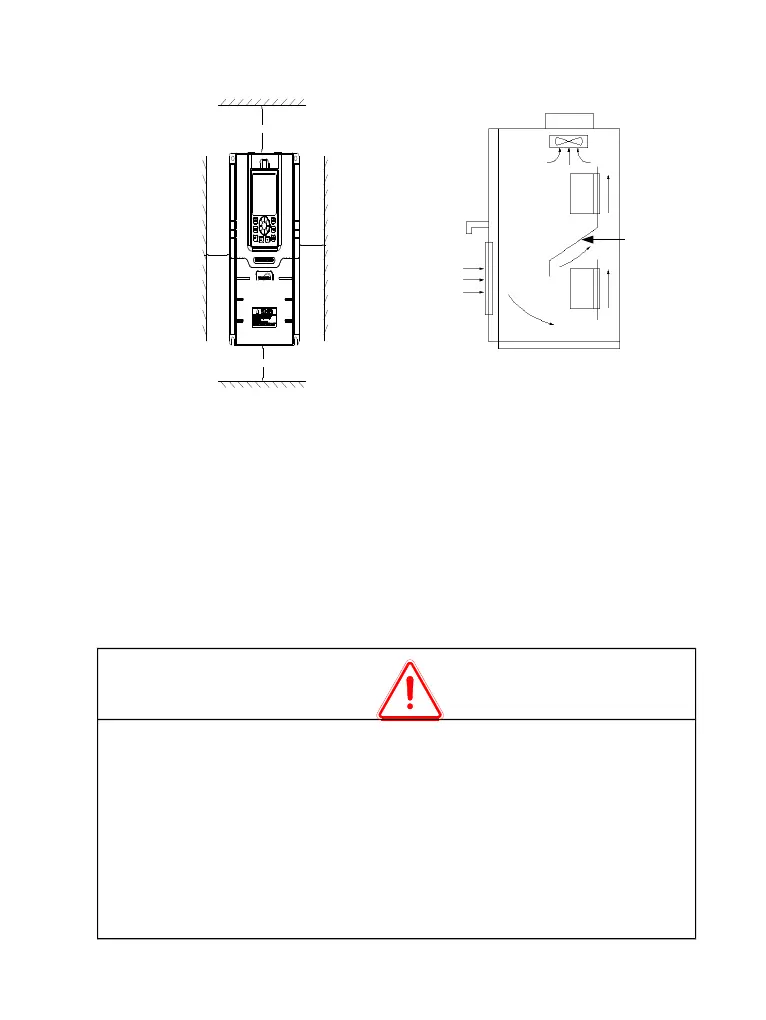

Fig.3-1 Mounting space and distance Fig.3-2 Mounting of multiple inverters
3.2 Removing and Mounting Front Cover of Inverter
Removing: Remove 4screws on the cover and take the cover out.
Mounting: Align the mounting holes and screw them.
3.3 Wire Connection
Attention
(1) Before wiring, please ensure the power has been removed and be wait for at
least 10minutes.
(2) Please do not connect AC power to output terminals U/V/W.
(3) To ensure the safety, the inverter and motor should be safety grounding. It is
necessary to use copper wire above 3.5mmas ground wire, grounding resistance
less than 10Ω.
(4) The inverter has gone through voltage withstand test in factory, please do not
Invert
er
Inverte
r
Air flow diverting
plate
To Next Page
