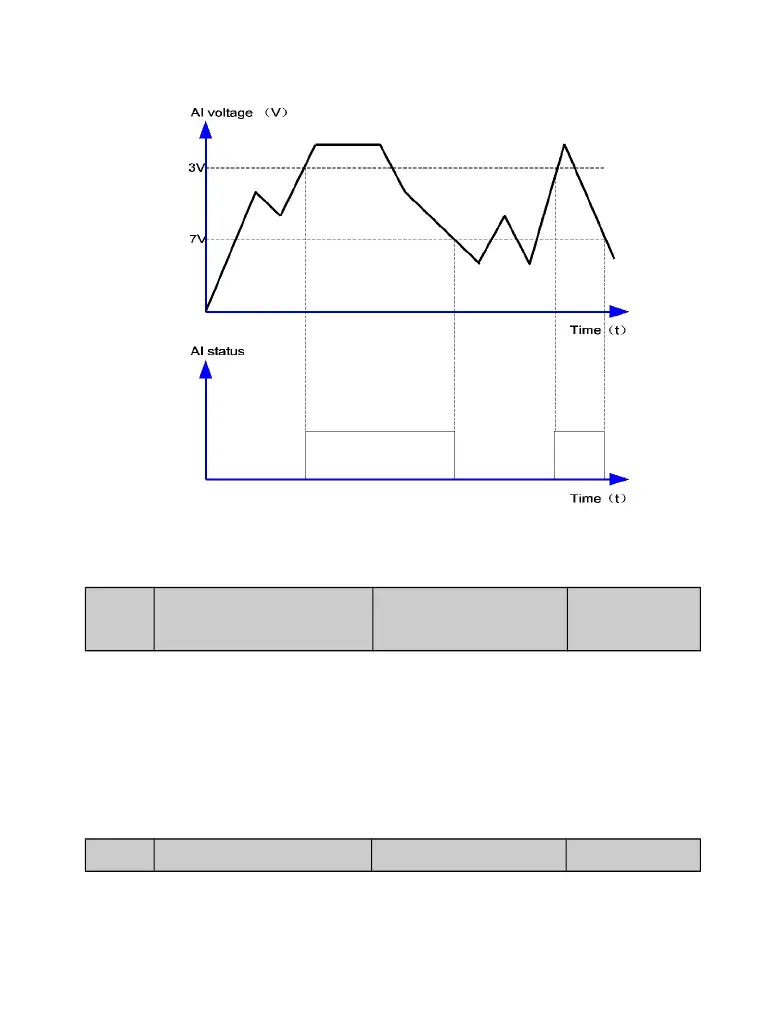

Figure6-18 Relationship of AI input voltage and corresponding DI
status
P3.13 X filter time Setting Range：
0.000s～1.000s
0.010s
It is used to set the software filter time of X terminal status. If DI terminals are liabl
e to
interference and may cause malfunction, increase the value of
this parameter to enhance the anti-interference capability.
However, increase of X filter time will reduce the response of X
terminals.
P3.14
Terminal command mode
Setting Range：0～3 0
This parameter is used to set the mode in which the AC drive is controlled by external
terminals in four modes.
