degdrive DGI900 - Two-Line Mode 1;2; Three-Line Mode 1

164
0：Two-line mode 1
1：Two-line mode 2
2：Three-line mode 1
SB1：Stop button
SB2：Forward button
SB3: Reverse button
K2K1RUN
Command00Stop10Stop01Forward
RUN11Reverse RUN
YX9000
FWD
REV
COM
K
1
K
2

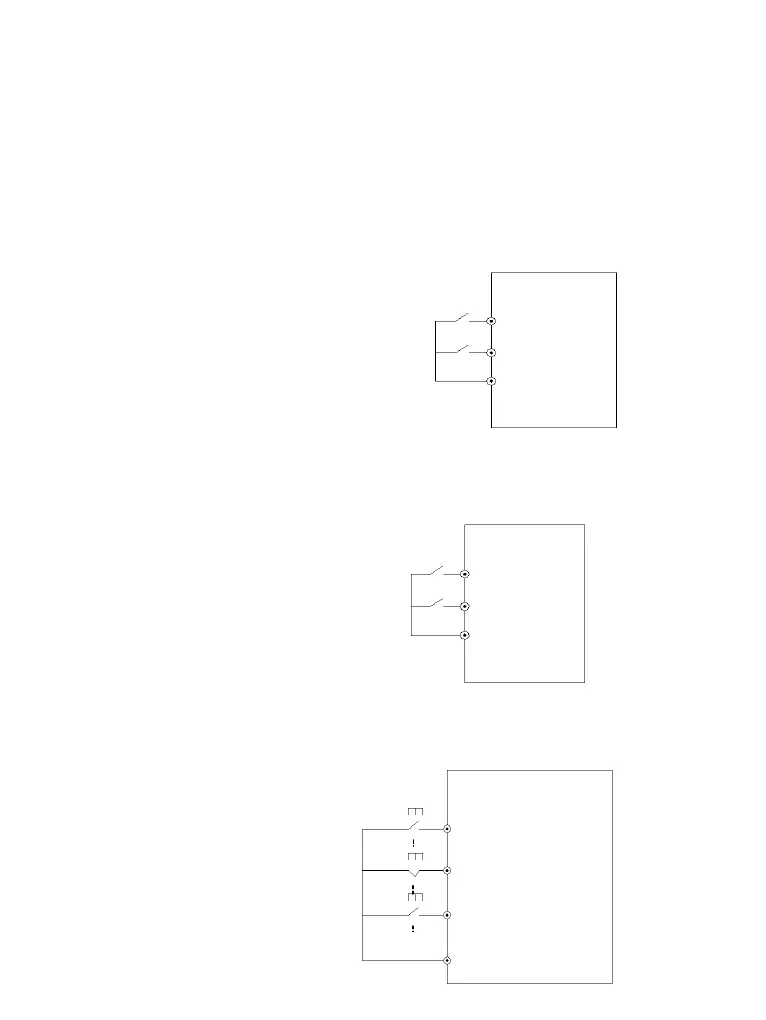

Figure 6-20 Two-line
mode 2
K2K1RUN
Command00Stop01Forward
RUN10Reverse RUN11Stop
YX9000
FWD
REV
COM
K
1
K
2
Figure 6-19 Two-line mode 1
YX9000
FWD
REV
COM
Xi
SB2
SB1
SB3
Figure 6-21 Three-line
mode 1
