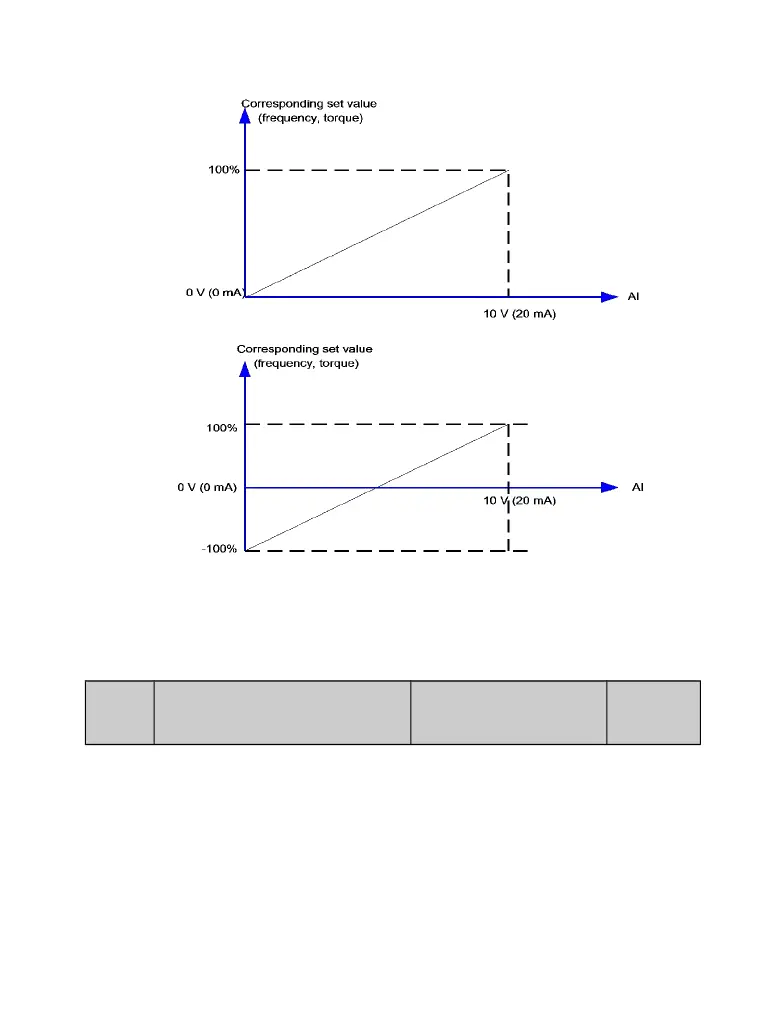

Figure 6-23 Corresponding relationship between analog input and
set values
P3.36 VI curve selection Setting Range：333～
000
321
The unit's digit, ten's digit and hundred's digit of this parameter are respectively used to
select the corresponding curve of VI and CI. Any of the five curves can be selected for VI
and CI.
Curve 1, curve 2 and curve 3 are all 2-point curves, set in group
P3. Curve 1 corresponding to P3.16 to P3.20, Curve 2
