degdrive DGI900 - Manual Torque Boost; Setting of Multi-Point V;F Curve; V;F Slip Compensation Gain; Cut-Off Frequency of Torque Boost

182
Figure 6-24 Manual torque boost
P5.02
Cut-off frequency of
torque boost
Setting Range：0.00 Hz to
maximum output frequency
50
This parameter defines the cut-off freqency of torque boost,
see Fz in figure 6-24, this cut-off frequency suitable for any V/F
curve in P5.00.
P5.03
Multi-point V/F
frequency 1 (F1)
Setting Range：0.00Hz ～ P5.05 0.00Hz
P5.04
Multi-point V/F
voltage 1 (V1)
Setting Range：0% ～ 100.0％ 0.0％
P5.05
Multi-point V/F
frequency 2 (F2)
Setting Range ： P5.03 ～ P5.07 0.00Hz
P5.06
Multi-point V/F
voltage 2 (V2)
Setting Range：0% ～ 100.0％ 0.0％
P5.07
Multi-point V/F
frequency 3 (F3)
Setting Range：P5.05 to rated
motor frequency
0.00Hz
P5.08
Multi-point V/F
voltage 3 (V3)
Setting Range：0% ～ 100.0％ 0.0％
These six parameters are used to define the multi-point V/F
curve.

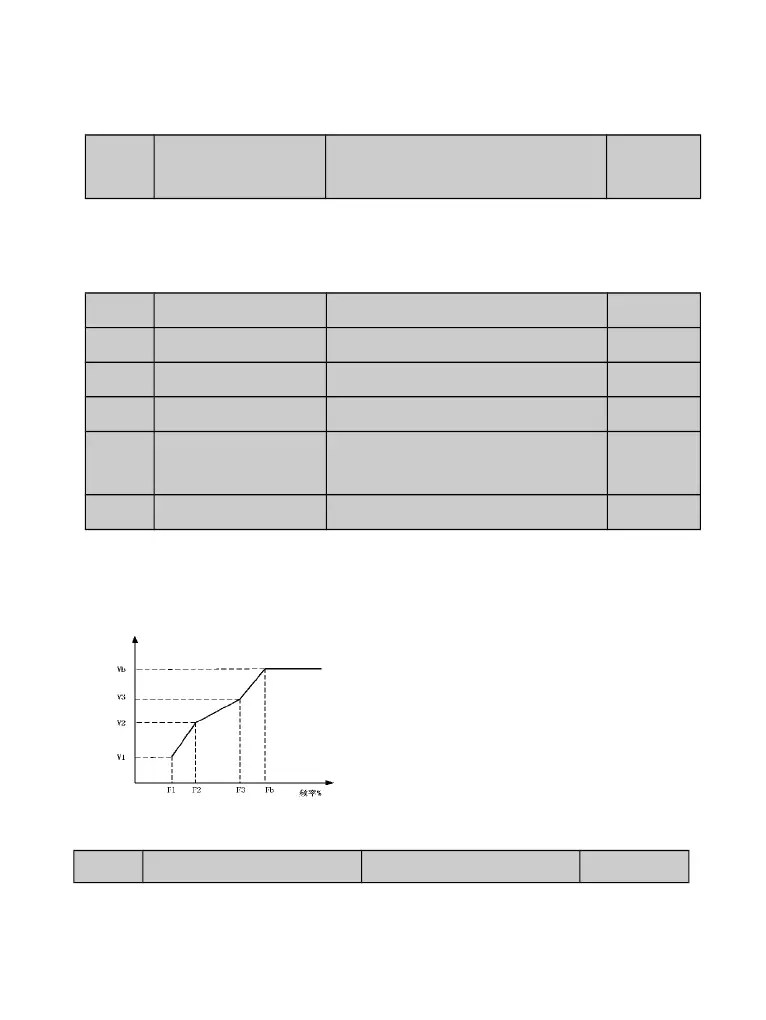

Figure 6-25 Setting of multi-point V/F curve
V1 ～ V3 ： 1st, 2nd and 3rd voltage
percentages of multi-point V/F
F1 ～ F3 ： 1st, 2nd and 3rd frequency
percentages of multi-point V/F
Fb：Rated motor running frequency
P5.09
V/F slip compensation gain
Setting Range：0%~200% 0%
This parameter is valid only for the asynchronous motor.
