Note Use only one of the power connectors. Never apply power to both the MAIN and AUX connectors
at the same time.
Pin Description
Pin 1 GROUND
Pin 2 INPUT
Pin 3 Input/ Output
Pin 4 Power

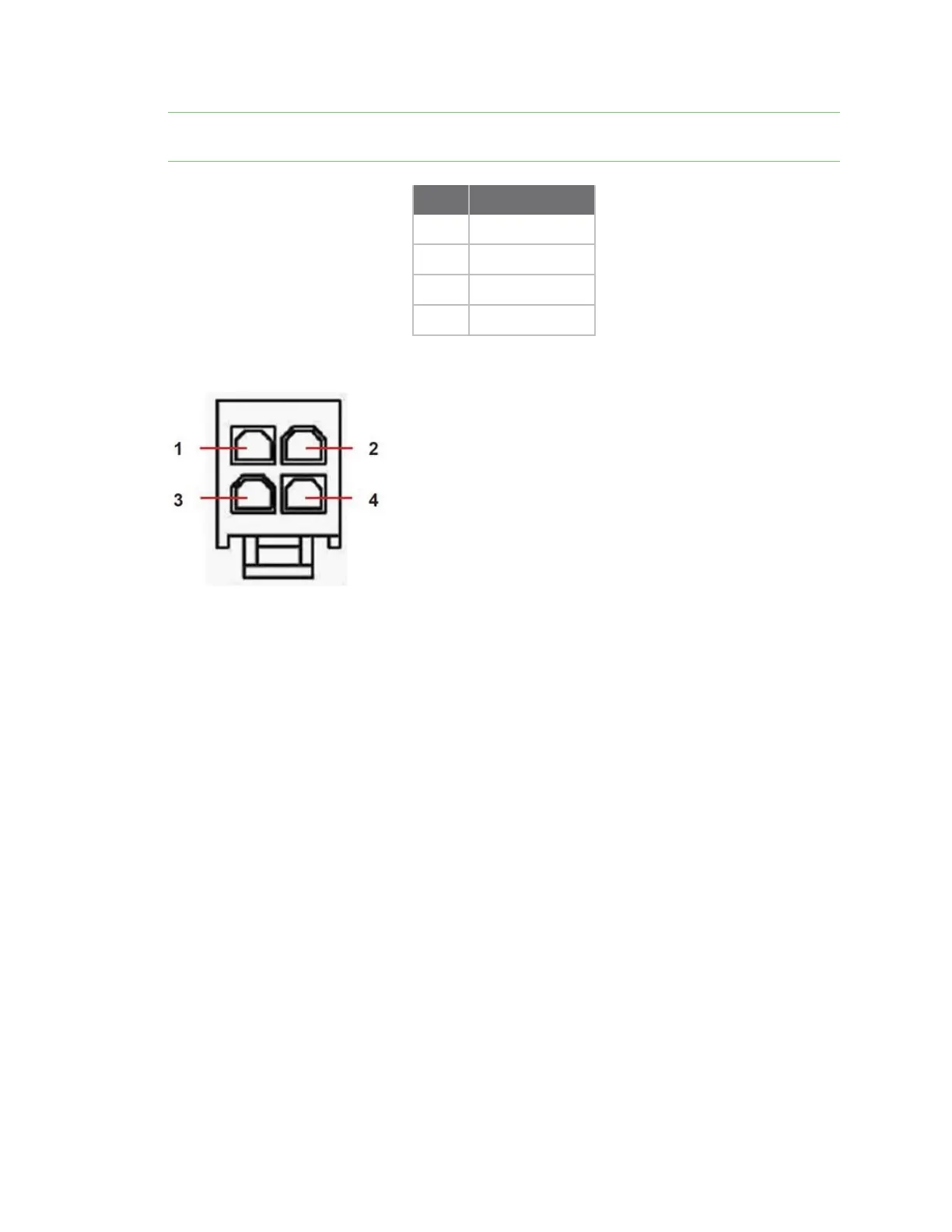

The following image shows the pins and the corresponding numbers:
For more information on wiring and other details, see the 4-pin DC Power Cord User Guide, Digi part
number 90001246.
