TransPort WR41 hardware features

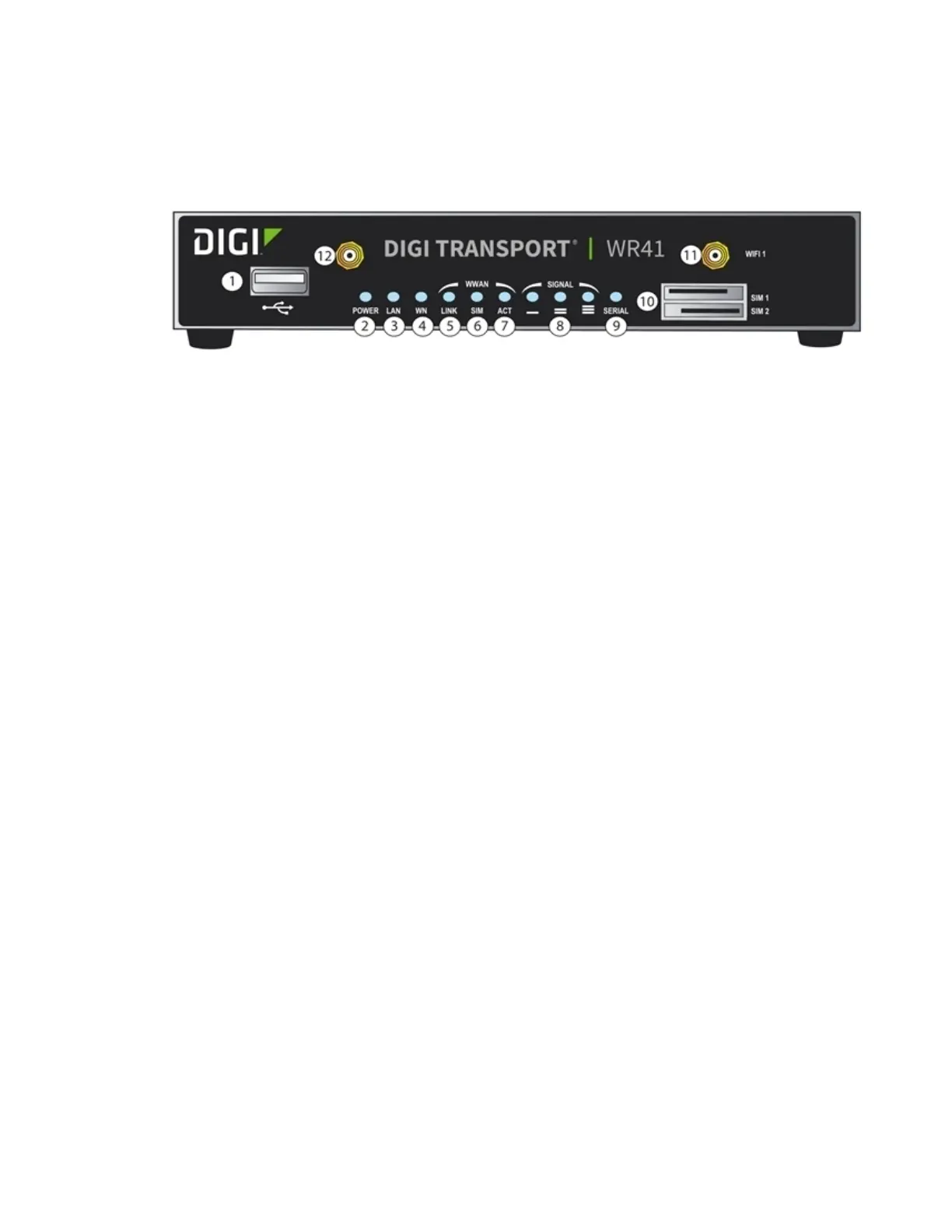

Front panel
1. USB host connector: Connects compatible USB 2.0 client devices such as memory sticks, and
serial adapters. The total current available to power USB devices is 0.5 A.
2. POWER LED:
n Off: No power
n Green: TransPort device is powered
3. LAN LED: Illuminates steadily when there is a network connection to the LAN port and flashes
when data is transmitted or received.
4. WN LED:
n Wi-Fi models: Illuminates steady if Wi-Fi activity is present.
n Non-Wi-Fi models: Flashes to show which network mode the router is operating in:
Off: No service
1 blink: GPRS mode
2 blinks: EDGE mode
3 blinks: UMTS mode
4 blinks: HSDPA mode
5 blinks: HSUPA mode
6 blinks: LTE mode
5. LINK LED: Illuminates steadily when a wireless WAN data connection has been established.
6. SIM LED: Illuminates steadily when a valid SIM card is installed.
7. ACT LED: Flashes to indicate that data is being transferred over the wireless WAN network.
8. SIGNAL LEDs: Indicate strength of cellular signal.
n 3 LEDs: Excellent
n 2 LEDs: Good
n 1 LED: Fair
n 0 LEDs: Poor or No signal
9. SERIAL LED: Illuminates steady if a terminal is connected to the SERIAL port and the DTR
signal is on. Flashes when data is transmitted or received.
