TransPort WR31 digital and analog inputs and outputs
The TransPort WR31 has an input/output connector with two digital input/output connections,
and a single analog input connection.
I/O connector pin assignments

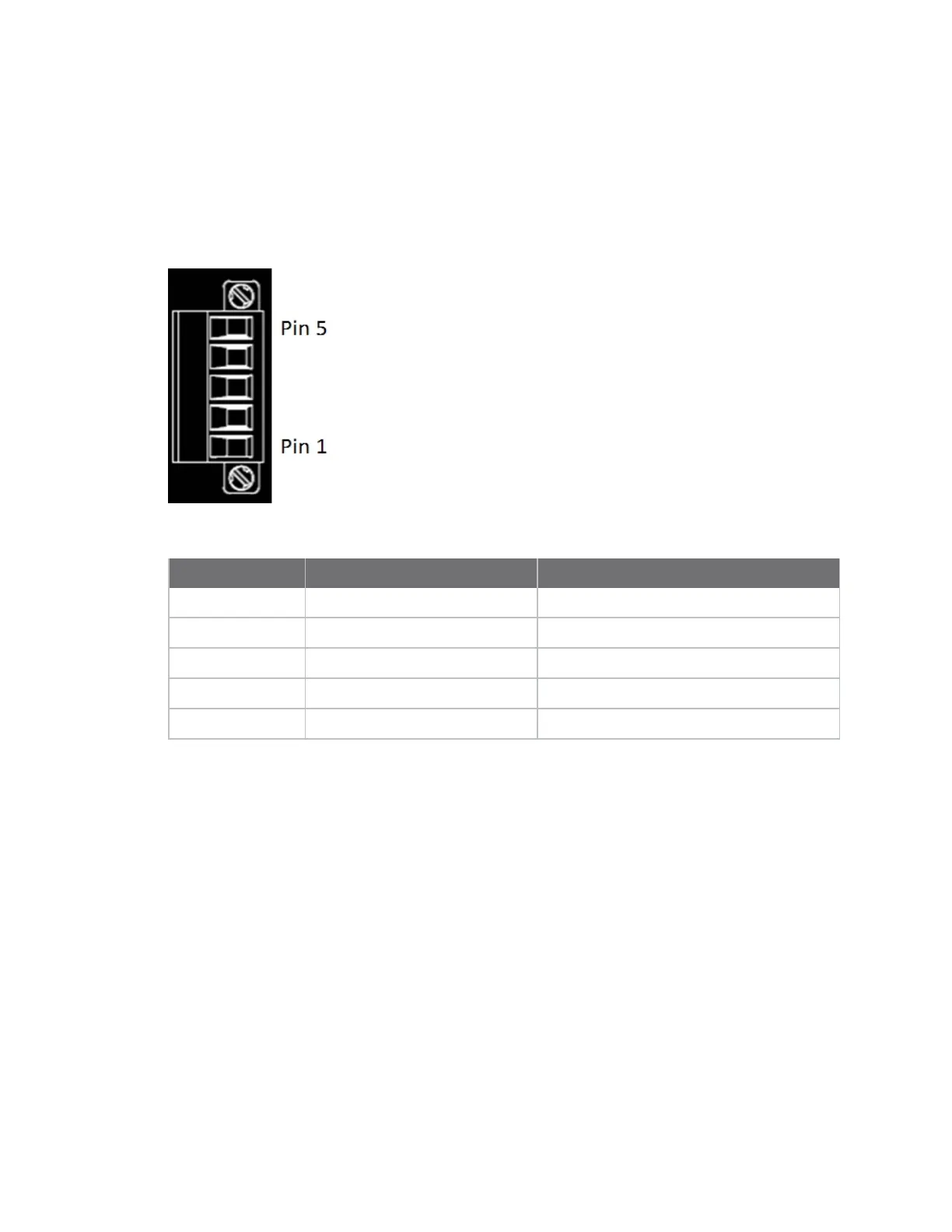

The figure and table show the I/O connector, pin assignments, and the signals for each pin.
Pin# Symbol Description
5 AIN0 Analog Input 0
4 AGND Analog Return
3 DIO0 Digital I/O 0
2 GND Digital Return
1 DIO1 Digital I/O 1
