TransPort WR44 RR Ethernet cable connectors and pinouts

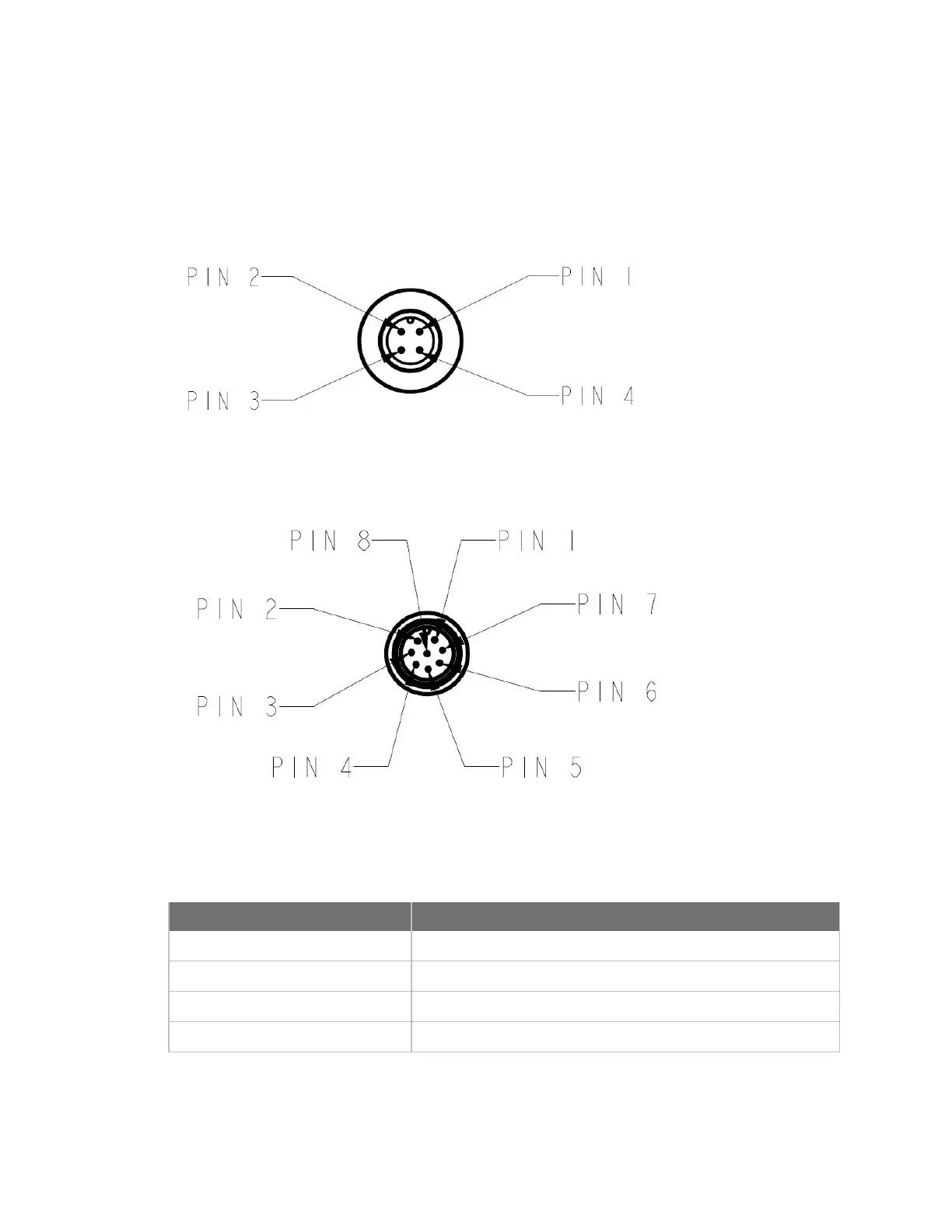

Pin locations
4-pin connector pin locations
8-pin connector pin locations
Power connector
The power connector is an M12-4 pin, A Coded connector. Pinout is as follows:
Pin Signal
1 Power +ve
2 GPIO 0
3 Power -ve
3 GPIO 1
