The fans of the PX10 have a dust filter. You have to check the dust
filter for dirt at least once a year. More frequent checks may be
necessary depending on the operating conditions. If the dust filter is
dirty, you must replace it.
N O T I C E
A dirty dust filter blocks the input air stream and increases
the temperature in the box, which may shorten the life of
the hardware components.
dSPACE provides a pack of three replacement dust filters with the
order number: FILTER_PAD_PX10. For instructions, refer to How to
Check and Replace the Dust Filter of an Expansion Box on page 50.
Checking and replacing the
dust filter

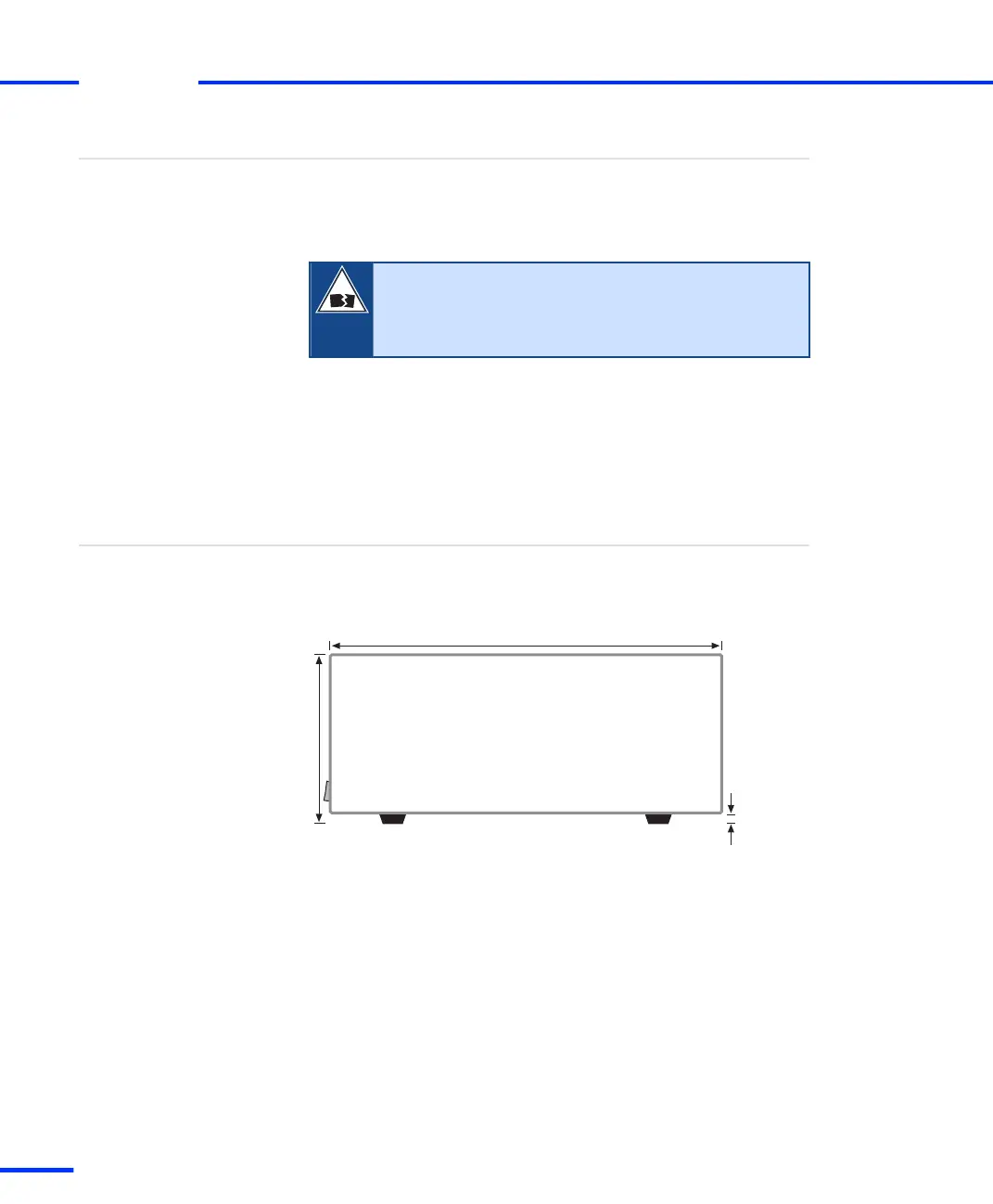

PX10 Dimension Drawings
The illustrations below show the outer dimensions and the position of
ventilation slots of the desktop version.
Desktop version
183 mm
(7.2 in.)
430 mm (16.9 in.)
7,6 mm
(0.3 in.)
Side view
Front
s
Accessories
t
256
s
DS1103 Hardware Installation and Configuration November 2014
