PX20 Dimension Drawings

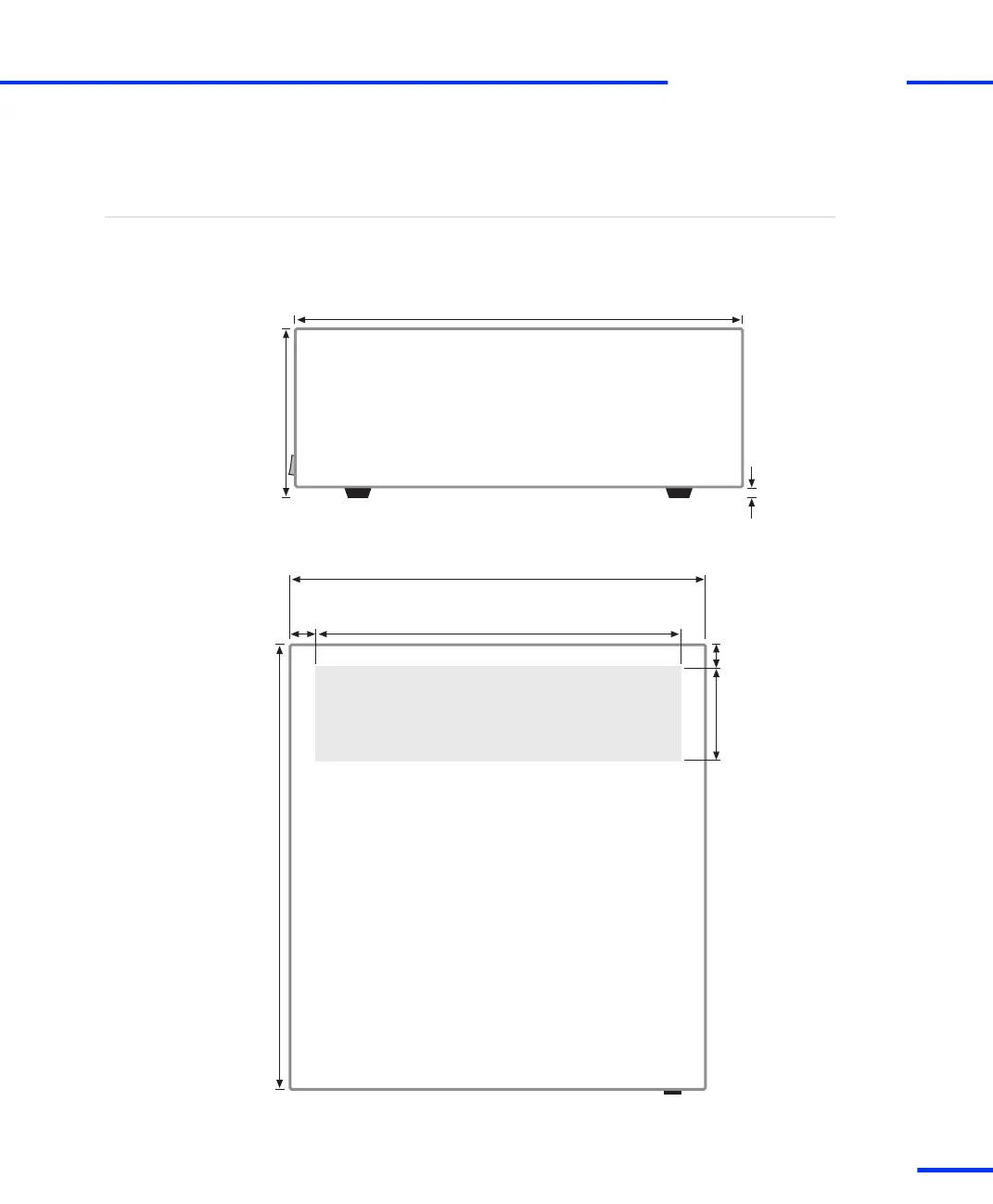

The illustrations below show the outer dimensions and the position of
ventilation slots of the desktop version.
De
skt
op
ver
sio
n
183 mm
(7.2 in.)
535 mm (21.0 in.)
7,6 mm
(0.3 in.)
Side view
Front
443 mm (17.4 in.)
535 mm
(21.0 in.)
107 mm (4.2 in.)
407 mm (16.0 in.)
23 mm (0.9 in.)
18 mm
(0.7 in.)
T
op view
Front
V
entilation slot
s
dSPACE Expansion Boxes
t
DS1103 Hardware Installation and Configuration November 2014
265
t
264
266
