How to Remove dSPACE CardSafe for Transportation
To transport the notebook in a bag, you have to remove only the card
fixture of the CardSafe.
Objective
n DS815: The connector of the DS815 Link Board is removed. The
link board can remain in the notebook.
n DS821: The DS821 Link Board is removed from the notebook.
Preconditions
To remove dSPACE CardSafe for transportation
Method

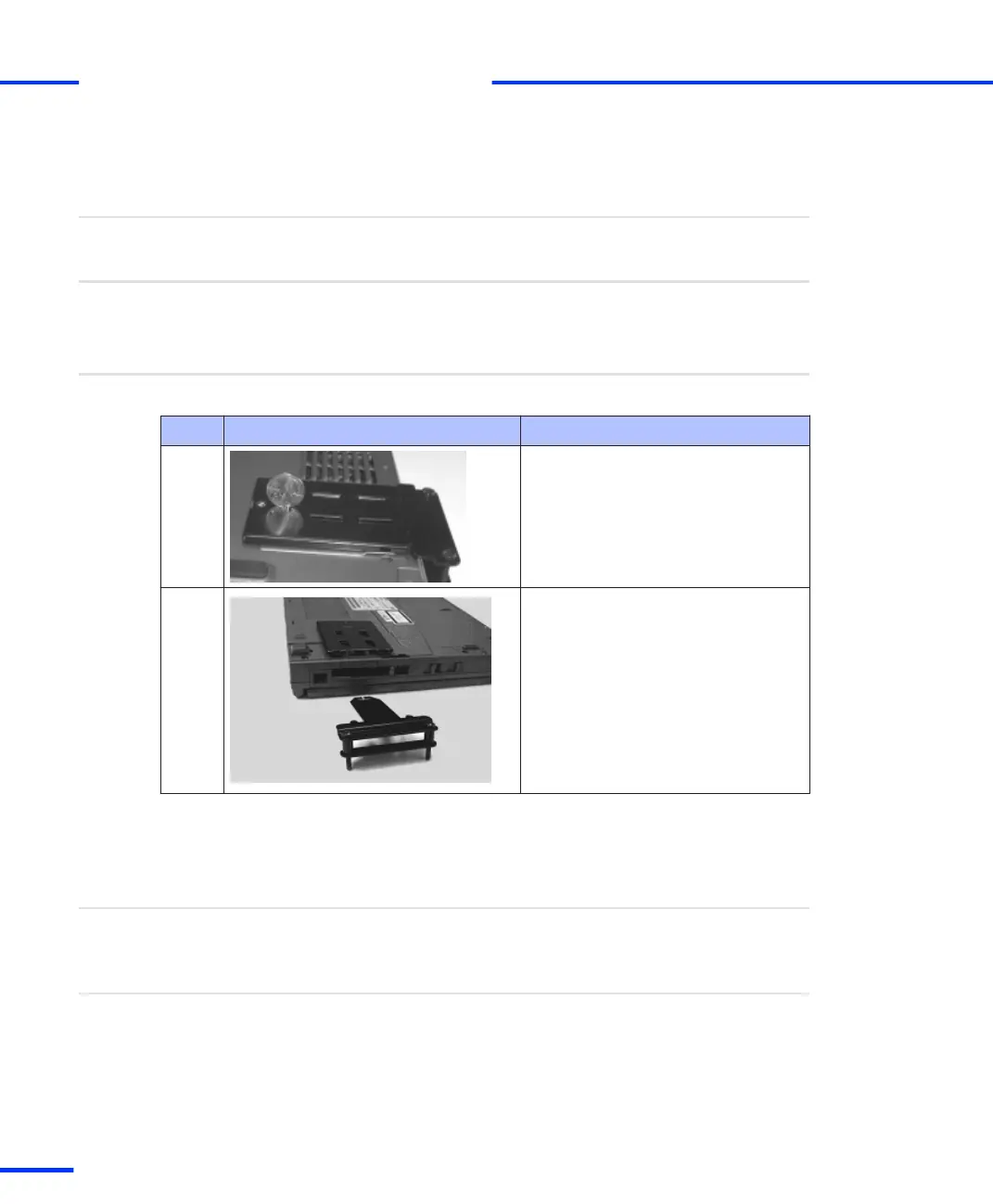

Step Illustration Instruction
1 Push a small coin on the spring of the
base plate.
To avoid injury, do not use your
fingernail to unlock the connector
fixture.
2 Remove the card fixture.
How to Remove dSPACE CardSafe Completely
Some notebooks with an installed CardSafe may no longer fit in
docking stations. In such cases the CardSafe must be removed
completely.
Objective
n DS815: The connector of the DS815 Link Board is removed. The
link board can remain in the notebook.
n DS821: The DS821 Link Board is removed from the notebook.
Preconditions
s
Connecting an Expansion Box to the Host PC
t
72
s
DS1103 Hardware Installation and Configuration November 2014
