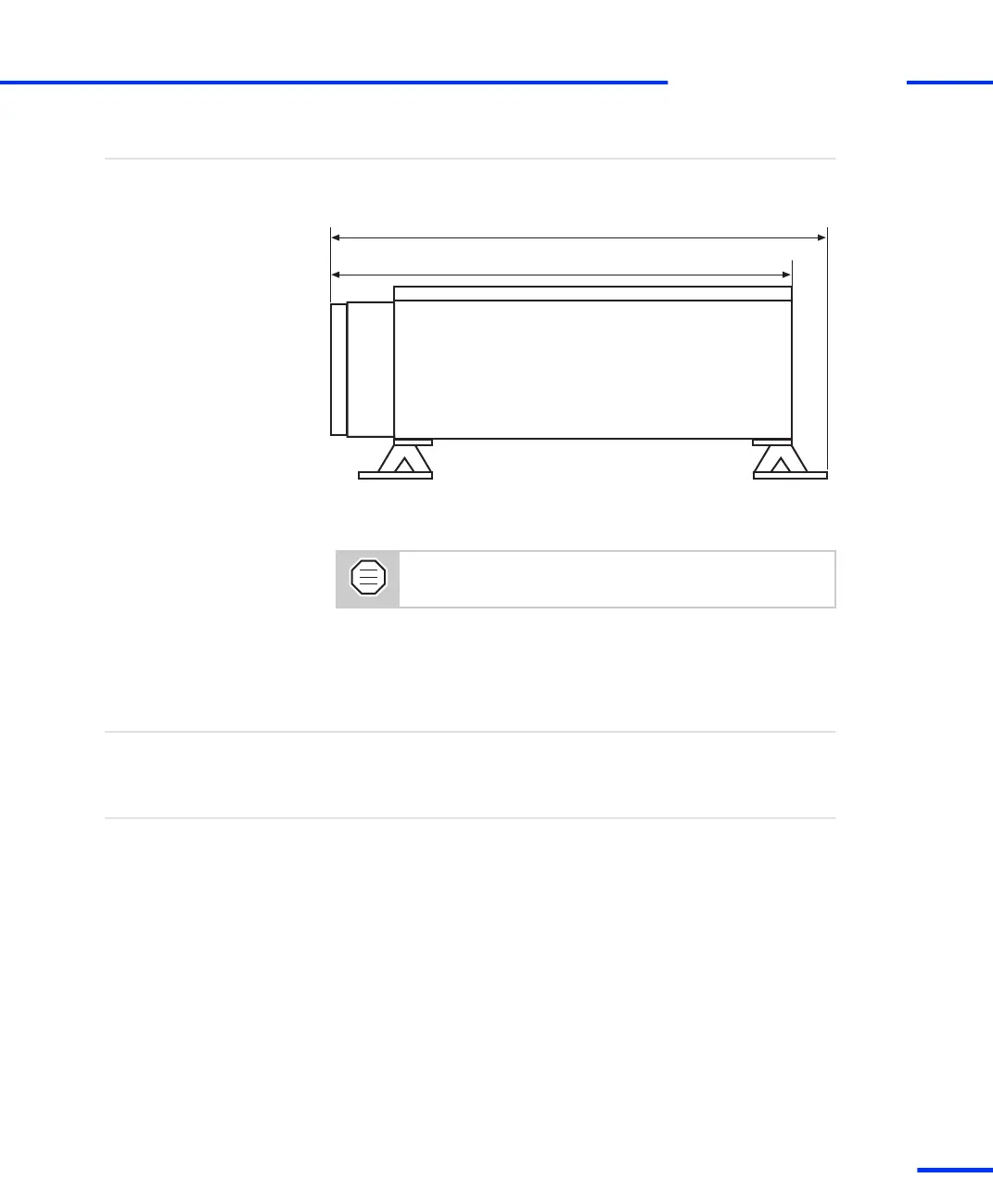

The following diagram shows the physical dimensions of the AutoBox
with heater that diverge from the one without heater.
AutoBox with heater
485 mm (19.1 in.)
517.5 mm (20.4 in.)
Not to scale
Autobox Version 4.0 and later is not available with an
optional heater.
Power Input Connector
Each power supply unit provides a power input connector. It is a 7-
pin, male connector with two high‑current pins. It is adapted from a
15‑pin Sub-D connector.
Objective
One mating connector with connecting leads is included in the
AutoBox package.
This cable is intended to operate the AutoBox with a laboratory
power supply during development. Therefore, pin 4 (remote) is
shorted to pin A2 inside the connector in order to save a separate
switch. Do not use this cable in the vehicle. Otherwise, the AutoBox
will always be turned on.
Matching cable
s
dSPACE Expansion Boxes
t
DS1103 Hardware Installation and Configuration November 2014
279
