19" Rack Enclosure

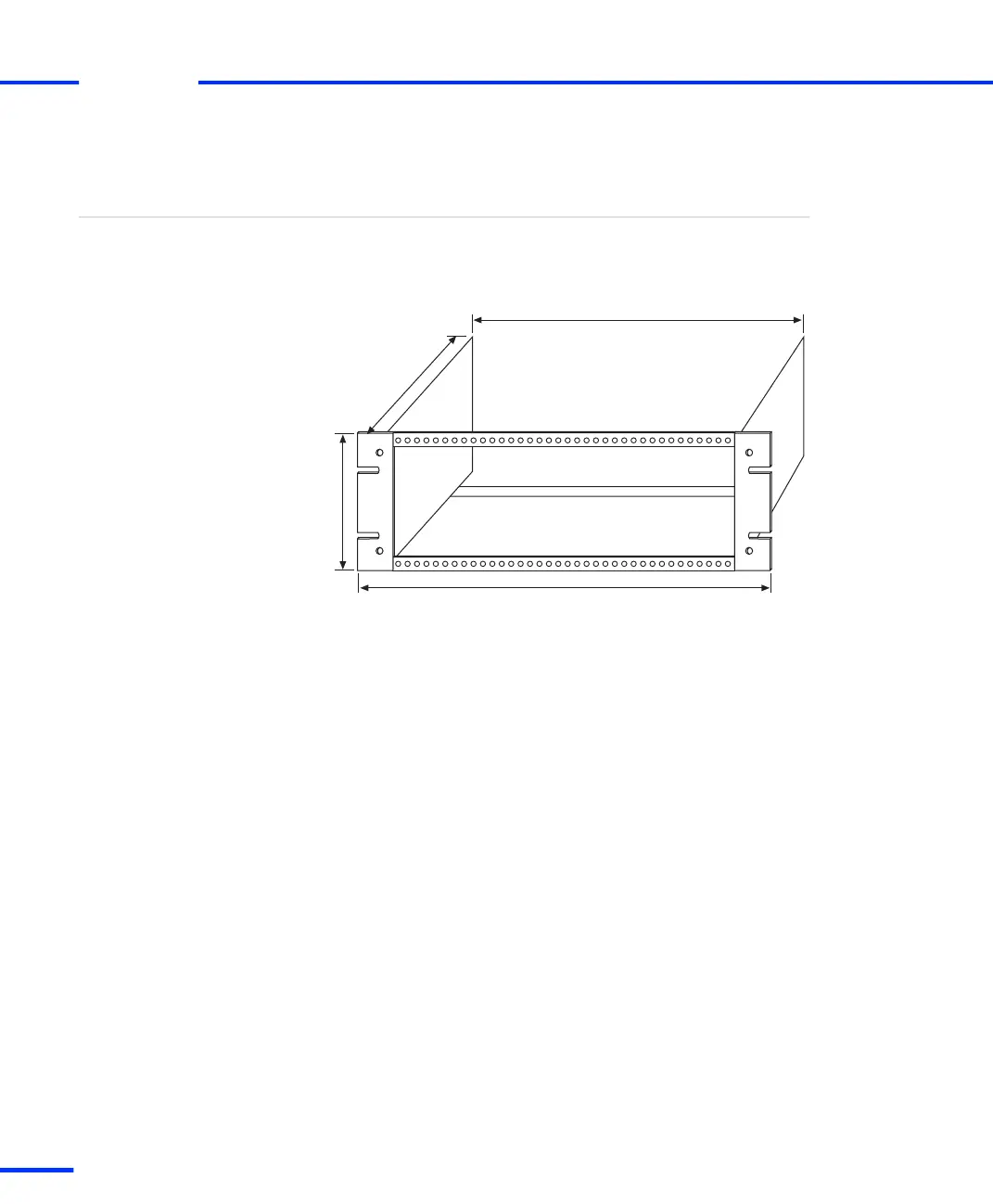

The illustration below shows the outer dimensions of a 19" rack
enclosure for alternative installation of connector and LED panels
(CPs, CLPs and LPs).
Di
men
sio
ns
d = 240 mm
(9.44 inch)
l1 = 445 mm (17.52 inch)
l2 = 485 mm (19.09 inch)
h = 135 mm
(5.31 inch)
s
Accessories
t
298
s
DS1103 Hardware Installation and Configuration November 2014
297
299
